Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE LITE
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano TIAGRA GS
Front Derailleur
Shimano TIAGRA D
Shift Levers
Shimano Tiagra Dual control
Cassette
Shimano CS-HG500-10 11-32
Crank
Shimano TIAGRA 50-34 [BSA]
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp SL 24 pair
Spokes
Black stainless
Tires
Maxxis Detonator 25 fold
Brakes
Brakes
MERIDA Road Comp
Brake Levers
Shimano Tiagra
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid semi neck pro
Seat
Saddle
MERIDA Race
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.6 mm | 1.62 mm | 1.64 mm | 1.62 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 588 mm | 589 mm | 587 mm | 587 mm | 587 mm | 596 mm | 611 mm | 636 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 53 mm | 45 mm | 43 mm | 46 mm |
| Trail | 69 mm | 69 mm | 63 mm | 60 mm | 48 mm | 57 mm | 59 mm | 56 mm |
| Stack | 542 mm | 552 mm | 565 mm | 576 mm | 597 mm | 621 mm | 645 mm | 664 mm |
| Reach | 380 mm | 378 mm | 381 mm | 383 mm | 373 mm | 383 mm | 393 mm | 409 mm |
| Top Tube Length | 524 mm | 524 mm | 536 mm | 546 mm | 556 mm | 571 mm | 586 mm | 611 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm | 620 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm | 260 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 995 mm | 996 mm | 994 mm | 994 mm | 994 mm | 1003 mm | 1018 mm | 1043 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 712 mm | 736 mm | 761 mm | 778 mm | 797 mm | 817 mm | 845 mm | 872 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

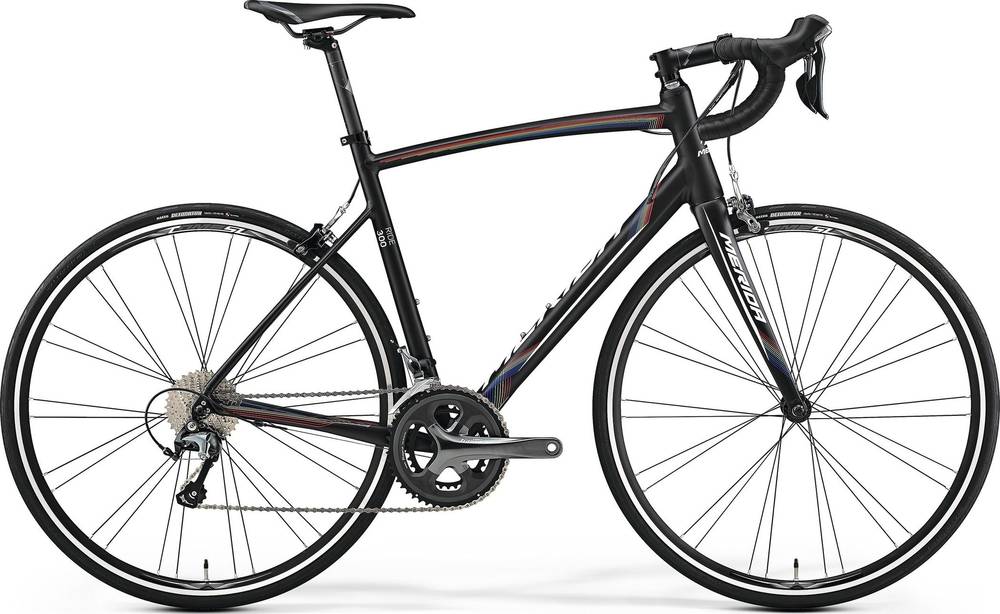

RIDE 300 is a Merida Ride model. There are 74 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 9.18 kg (20.24 lbs), Merida bike is considerably heavier than average. In other words, this model is 11.95% heavier than the average Endurance bike.
RIDE 300 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on RIDE 300 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
