Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE LITE
Suspension Fork
Road carbon comp
Drivetrain
Rear Derailleur
Shimano TIAGRA GS
Front Derailleur
Shimano TIAGRA T
Shift Levers
Shimano Tiagra Dual control
Cassette
Shimano CS-4600-10 12-30
Crank
Shimano TIAGRA 50-39-30
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp 20 pair
Tires
Maxxis Dolomites 25 fold
Brakes
Brakes
Merida Road Comp
Brake Levers
attached
Cockpit
Handlebar
MERIDA Anatomic road OS
Headset
Big Conoid semi neck pro
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.57 mm | 1.62 mm | 1.65 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 588 mm | 588 mm | 586 mm | 587 mm | 587 mm | 596 mm | 611 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 70 mm | 64 mm | 60 mm | 57 mm | 57 mm | 57 mm |
| Stack | 542 mm | 552 mm | 565 mm | 576 mm | 597 mm | 621 mm | 645 mm |
| Reach | 380 mm | 378 mm | 381 mm | 383 mm | 381 mm | 383 mm | 391 mm |
| Top Tube Length | 524 mm | 524 mm | 536 mm | 546 mm | 556 mm | 571 mm | 586 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 995 mm | 995 mm | 993 mm | 994 mm | 994 mm | 1003 mm | 1018 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 710 mm | 735 mm | 760 mm | 776 mm | 795 mm | 814 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

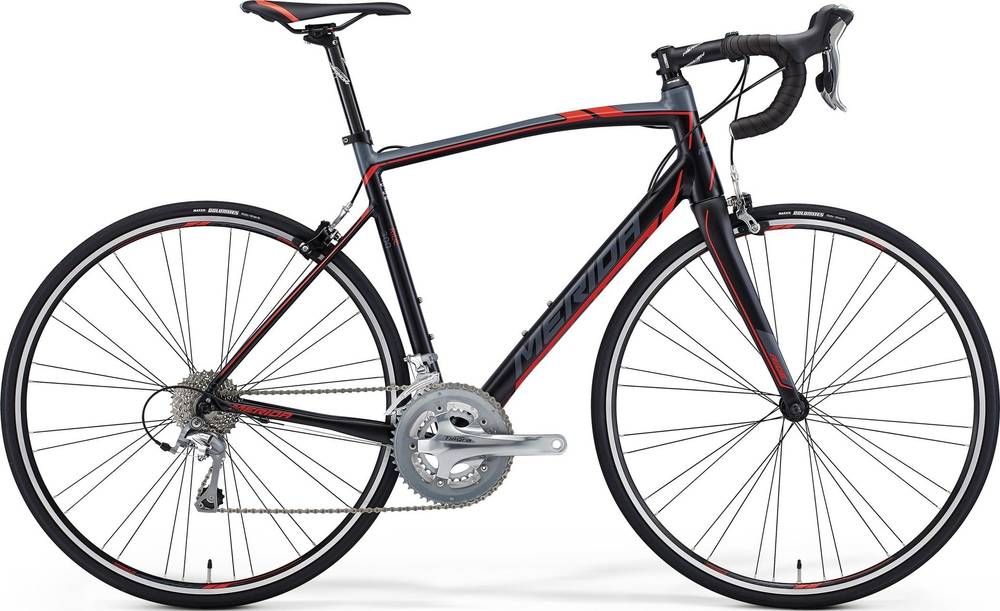

Model Overview
Ride 300-30 completes the Merida Ride model. Merida released 74 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Ride 300-30 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Ride 300-30 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Ride 300-30 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
