Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano TIAGRA GS
Front Derailleur
Shimano TIAGRA D
Shift Levers
Shimano Tiagra Dual control
Cassette
Shimano CS-HG500-10 11-32
Crank
Shimano TIAGRA 50-34 [BSA]
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp SL 24 pair
Spokes
Black stainless
Tires
Maxxis Detonator 25 fold
Brakes
Brakes
MERIDA Road Pro
Brake Levers
Shimano Tiagra
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Race
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.55 mm | 1.61 mm | 1.64 mm | 1.61 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 588 mm | 588 mm | 586 mm | 587 mm | 587 mm | 596 mm | 611 mm | 636 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70 mm | 70 mm | 63 mm | 60 mm | 56 mm | 57 mm | 57 mm | 57 mm |
| Stack | 548 mm | 548 mm | 561 mm | 573 mm | 593 mm | 617 mm | 641 mm | 660 mm |
| Reach | 379 mm | 379 mm | 382 mm | 384 mm | 382 mm | 384 mm | 392 mm | 411 mm |
| Top Tube Length | 524 mm | 524 mm | 536 mm | 546 mm | 556 mm | 571 mm | 586 mm | 611 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm | 620 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm | 260 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 995 mm | 995 mm | 993 mm | 994 mm | 994 mm | 1003 mm | 1018 mm | 1043 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 712 mm | 735 mm | 757 mm | 775 mm | 794 mm | 815 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

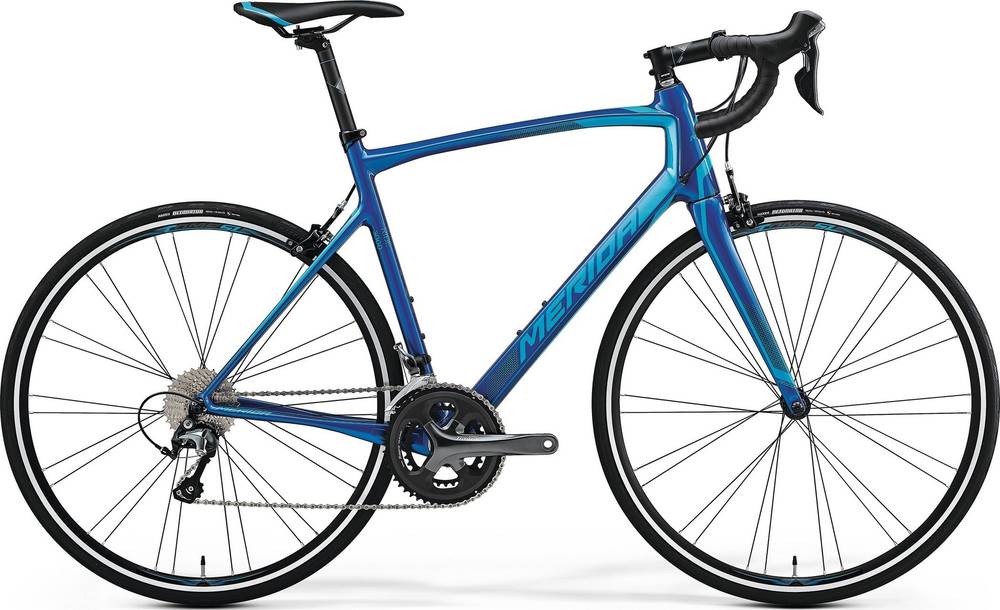

RIDE 3000 is a Merida Ride model. 74 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.77 kg (19.33 lbs), the RIDE 3000 model is a bit heavier than average. In other words, this model is 6.95% heavier than the average Endurance bike.
Overview of components
Fork material
RIDE 3000 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Merida RIDE 3000 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The RIDE 3000 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
