Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE LITE
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-32
Crank
Shimano RS500 50-34
Bottom Bracket
attached
Chain
FSA F11S
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Racing Sport
Tires
Maxxis Dolomites 25 fold
Brakes
Brakes
Merida Road Pro
Brake Levers
attached
Cockpit
Handlebar
MERIDA Anatomic road OS lady
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Juliet Sport
Seatpost
MERIDA carbon H SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.57 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 588 mm | 588 mm | 586 mm | 587 mm | 587 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 69 mm | 70 mm | 64 mm | 60 mm | 57 mm |
| Stack | 542 mm | 552 mm | 565 mm | 576 mm | 597 mm |
| Reach | 380 mm | 378 mm | 381 mm | 383 mm | 381 mm |
| Top Tube Length | 524 mm | 524 mm | 536 mm | 546 mm | 556 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 995 mm | 995 mm | 993 mm | 994 mm | 994 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 710 mm | 735 mm | 760 mm | 776 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

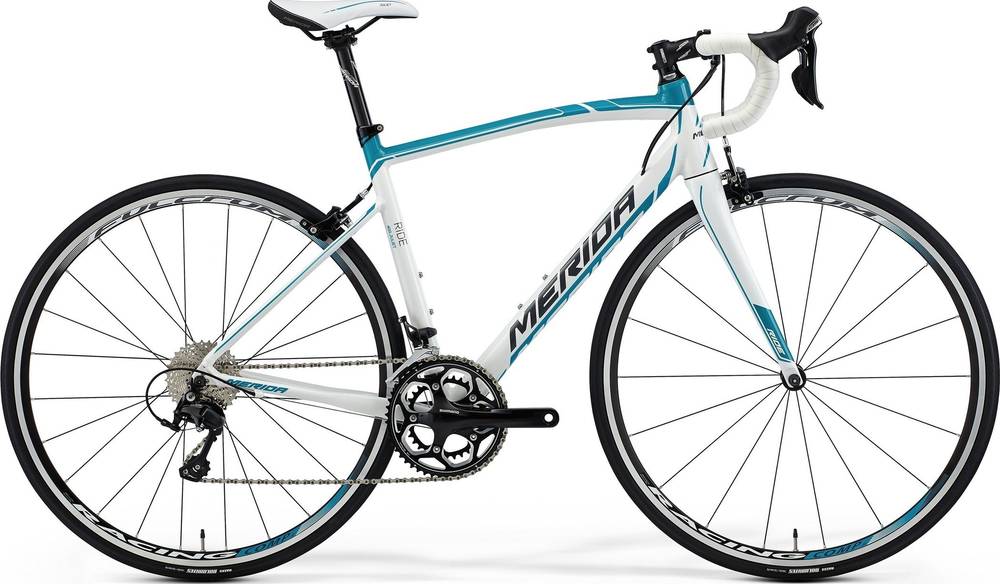

Ride 400 Juliet completes the Merida Ride model. 74 bikes variations carry this model name so far. Take a sneak peek at all Merida Ride bikes models from 2015, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Merida Ride 400 Juliet 2015, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Ride 400 Juliet is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
