Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE LITE
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-32
Crank
Shimano 105 50-34 [BSA]
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Racing comp
Spokes
attached
Tires
Maxxis Detonator 25 fold
Brakes
Brakes
MERIDA Road Pro
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Expert Compact road OS lady
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Juliet Sport
Seatpost
MERIDA carbon Expert SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.6 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 588 mm | 589 mm | 587 mm | 587 mm | 587 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 53 mm |
| Trail | 69 mm | 69 mm | 63 mm | 60 mm | 48 mm |
| Stack | 542 mm | 552 mm | 565 mm | 576 mm | 597 mm |
| Reach | 380 mm | 378 mm | 381 mm | 383 mm | 373 mm |
| Top Tube Length | 524 mm | 524 mm | 536 mm | 546 mm | 556 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 995 mm | 996 mm | 994 mm | 994 mm | 994 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 712 mm | 736 mm | 761 mm | 778 mm | 797 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

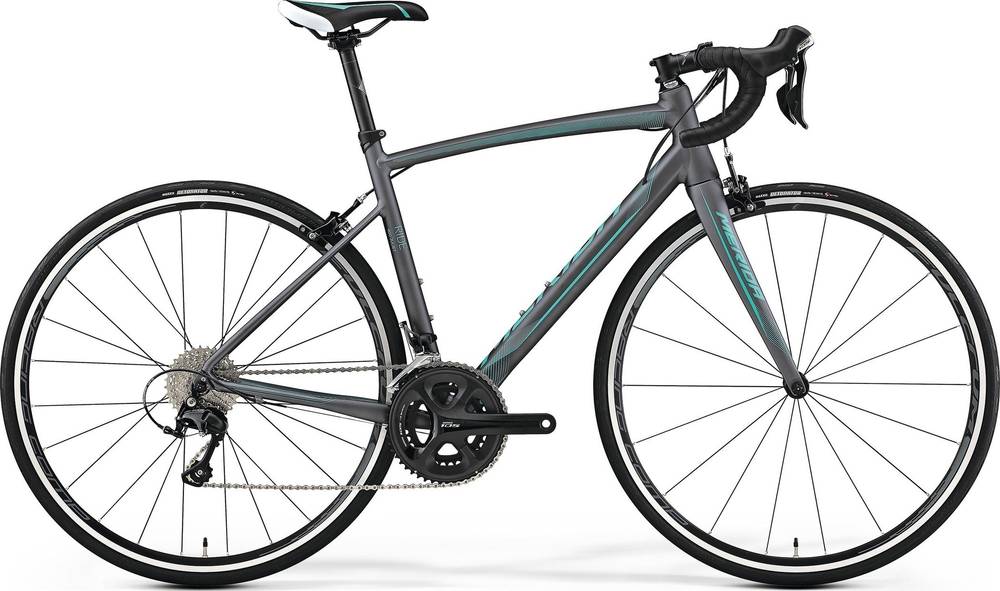

RIDE 400 JULIET belongs to the Merida Ride model. There are 74 bikes that carry this model name. You can easily view all of the Merida Ride bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, RIDE 400 JULIET has a weight of 8.59 kg (18.94 lbs). In conclusion, the average Endurance bike weighs 4.76% less than RIDE 400 JULIET.
RIDE 400 JULIET components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The RIDE 400 JULIET 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida RIDE 400 JULIET is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
