Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ride Carbon Comp-E
Suspension Fork
Road Carbon Comp
Drivetrain
Rear Derailleur
Shimano Tiagra SS
Front Derailleur
Shimano Tiagra D
Shift Levers
Shimano Tiagra Dual Control
Cassette
Shimano CS-4600-10 12-30
Crank
Shimano Tiagra 50-34
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano Tiagra
Rear Hub
Shimano Tiagra
Rims
Alex Race24
Spokes
black stainless-S
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
Merida Road Comp
Brake Levers
attached
Cockpit
Handlebar
MERIDA Anatomic Road OS
Headset
Big Conoid S-Bearing Neck Pro
Seat
Saddle
MERIDA Pro SI
Seatpost
Merida Carbon H SB15 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.56 mm | 1.61 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Stack | 544 mm | 544 mm | 557 mm | 569 mm | 589 mm | 613 mm |
| Reach | 375 mm | 375 mm | 378 mm | 380 mm | 378 mm | 380 mm |
| Top Tube Length | 520 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

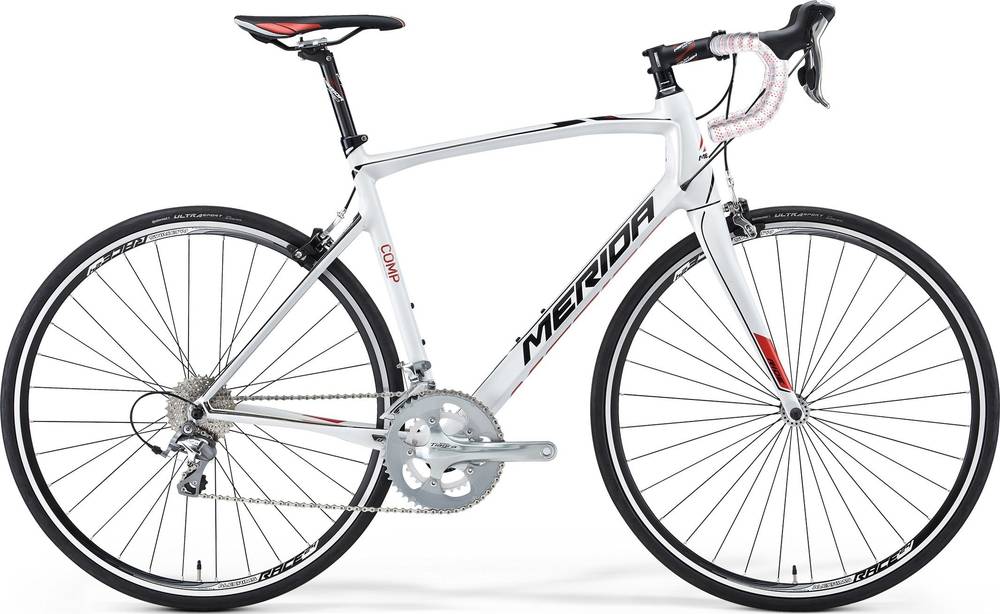

Ride CF 93 belongs to the Merida Ride model. 74 bikes variations carry this model name so far. Take a sneak peek at all Merida Ride bikes models from 2014, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Ride CF 93 has a weight of 8.6 kg (18.96 lbs). To sum up, it’s 4.88% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
Ride CF 93 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Ride CF 93 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ride CF 93 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
