Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE DISC AL
Suspension Fork
Race carbon disc 15
Drivetrain
Rear Derailleur
Shimano Sora SS
Front Derailleur
Shimano Claris D
Shift Levers
Shimano Claris
Cassette
Sunrace CS8 11-32
Crank
FSA Tempo 50-34
Chain
Chain 8s
Wheels
Front Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rear Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rims
MERIDA comp 22 disc pair
Spokes
Black stainless
Tires
Maxxis Detonator 25 fold
Brakes
Brakes
Promax Road PM mechanical disc
Brake Levers
Shimano Claris
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Race
Seatpost
MERIDA road comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.5 mm | 1.54 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 585 mm | 588 mm | 590 mm | 593 mm | 602 mm | 617 mm |
| Rake | 47 mm | 47 mm | 46 mm | 47 mm | 46 mm | 47 mm |
| Trail | 67 mm | 61 mm | 59 mm | 54 mm | 56 mm | 54 mm |
| Stack | 543 mm | 558 mm | 572 mm | 588 mm | 612 mm | 636 mm |
| Reach | 370 mm | 378 mm | 381 mm | 383 mm | 386 mm | 393 mm |
| Top Tube Length | 520 mm | 532 mm | 544 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 152 mm | 165 mm | 180 mm | 205 mm | 230 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 997 mm | 1000 mm | 1002 mm | 1005 mm | 1014 mm | 1029 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 735 mm | 761 mm | 779 mm | 797 mm | 817 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

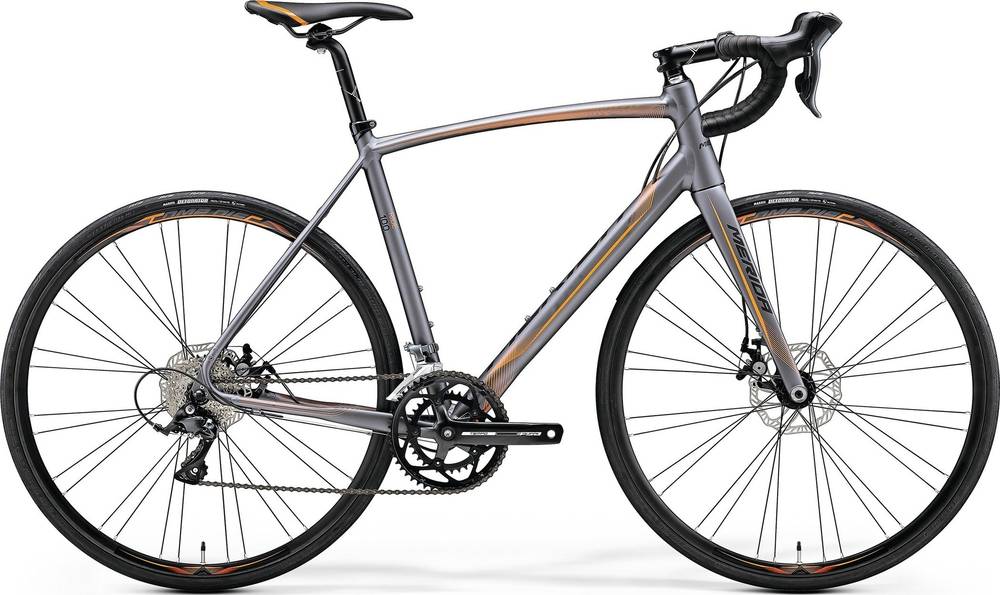

RIDE DISC 100 belongs to the Merida Ride model. There are 74 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.96 kg (21.96 lbs), the RIDE DISC 100 model is much heavier than average. In other words, this model is 21.46% heavier than the average Endurance bike.
RIDE DISC 100 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the RIDE DISC 100 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida RIDE DISC 100 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
