Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE DISC AL
Suspension Fork
Race carbon disc 15
Drivetrain
Rear Derailleur
Shimano TIAGRA GS
Front Derailleur
Shimano TIAGRA D
Shift Levers
Shimano Tiagra
Cassette
Shimano CS-HG500-10 11-32
Crank
FSA Gossamer 50-34 MegaExo (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X10
Wheels
Front Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rear Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rims
MERIDA comp 22 disc pair
Spokes
Black stainless
Tires
Maxxis Detonator 25 fold
Brakes
Brakes
Tektro Spyre disc 160
Brake Levers
Shimano Tiagra
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA BB410P/No.55E
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA road comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.5 mm | 1.54 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 585 mm | 588 mm | 590 mm | 593 mm | 602 mm | 617 mm |
| Rake | 47 mm | 47 mm | 46 mm | 47 mm | 46 mm | 47 mm |
| Trail | 67 mm | 61 mm | 59 mm | 54 mm | 56 mm | 54 mm |
| Stack | 543 mm | 558 mm | 572 mm | 588 mm | 612 mm | 636 mm |
| Reach | 370 mm | 378 mm | 381 mm | 383 mm | 386 mm | 393 mm |
| Top Tube Length | 520 mm | 532 mm | 544 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 152 mm | 165 mm | 180 mm | 205 mm | 230 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 997 mm | 1000 mm | 1002 mm | 1005 mm | 1014 mm | 1029 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 735 mm | 761 mm | 779 mm | 797 mm | 817 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

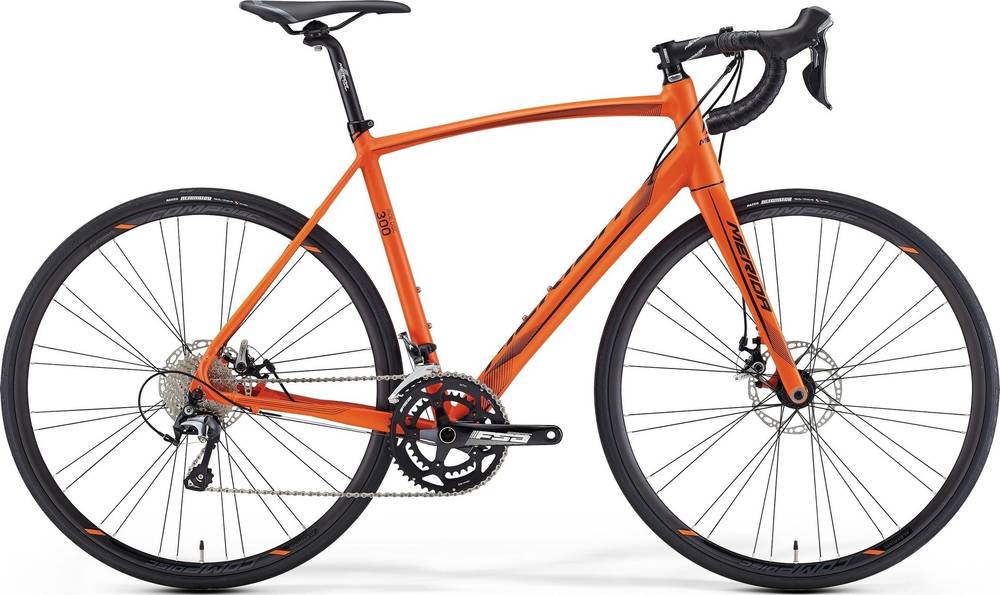

Model Overview
RIDE DISC 300 completes the Merida Ride model. 74 bikes variations carry this model name so far. Take a sneak peek at all Merida Ride bikes models from 2016, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida RIDE DISC 300 it’s weighing 9.6 kg (21.16 lbs). At this weight, is much heavier than average. To sum up, it’s 17.07% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the RIDE DISC 300 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida RIDE DISC 300 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
