Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE DISC CF2
Suspension Fork
Race carbon disc 15
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano TIAGRA D
Shift Levers
Shimano Tiagra Dual control
Cassette
Shimano CS-4600-10 12-30
Crank
FSA Gossamer 50-34 MegaExo
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rear Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rims
MERIDA comp 22 disc pair
Tires
Maxxis Dolomites 25 fold
Brakes
Brakes
Tektro Spyre disc 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA Anatomic road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.54 mm | 1.55 mm | 1.59 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 569 mm | 572 mm | 579 mm | 586 mm | 602 mm | 617 mm |
| Rake | 47 mm | 47 mm | 47 mm | 44 mm | 46 mm | 47 mm |
| Trail | 67 mm | 61 mm | 58 mm | 58 mm | 56 mm | 54 mm |
| Stack | 543 mm | 558 mm | 572 mm | 598 mm | 612 mm | 636 mm |
| Reach | 355 mm | 362 mm | 370 mm | 377 mm | 386 mm | 393 mm |
| Top Tube Length | 520 mm | 532 mm | 544 mm | 556 mm | 572 mm | 587 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 152 mm | 165 mm | 180 mm | 205 mm | 230 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 973 mm | 976 mm | 983 mm | 990 mm | 1006 mm | 1021 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 786 mm | 811 mm | 830 mm | 849 mm | 870 mm | 899 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

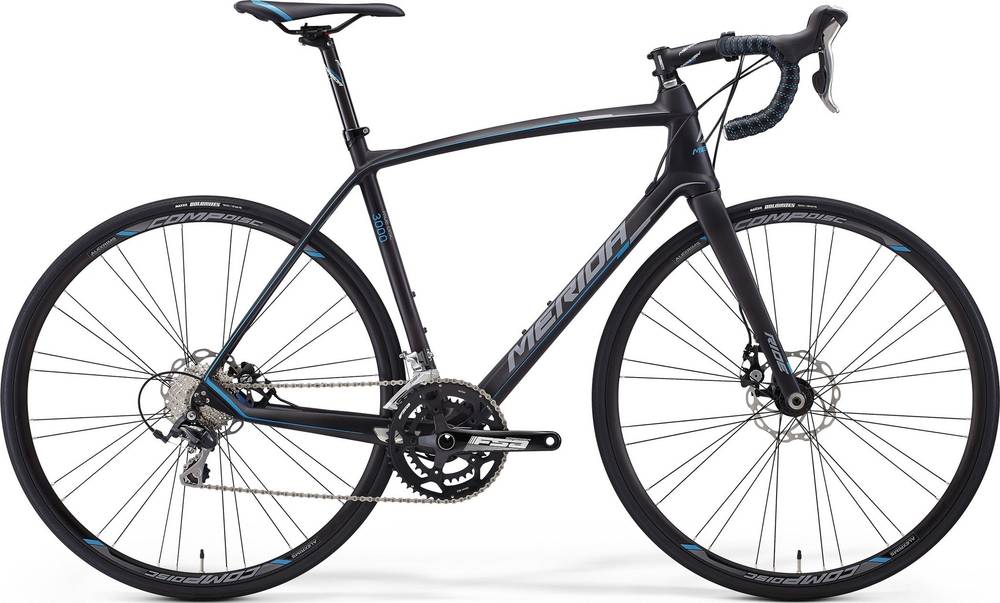

Ride Disc 3000 completes the Merida Ride model. Merida launched 74 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Ride Disc 3000 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Ride Disc 3000 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Ride Disc 3000 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
