Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RIDE DISC AL
Suspension Fork
Race carbon disc 15
Drivetrain
Rear Derailleur
SRAM Rival
Shift Levers
SRAM Rival HRD
Cassette
SRAM PG-1130 11-42
Crank
SRAM Rival 42T
Chain
KMC X11-1
Wheels
Front Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rear Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rims
MERIDA comp 22 disc pair
Spokes
Black stainless
Tires
Continental Grand Sport Race 28 fold
Brakes
Brakes
SRAM rotor 160
Brake Levers
SRAM Rival HRD
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Race
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.5 mm | 1.54 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 585 mm | 588 mm | 590 mm | 593 mm | 602 mm | 617 mm |
| Rake | 47 mm | 47 mm | 46 mm | 47 mm | 46 mm | 47 mm |
| Trail | 67 mm | 61 mm | 59 mm | 54 mm | 56 mm | 54 mm |
| Stack | 543 mm | 558 mm | 572 mm | 588 mm | 612 mm | 636 mm |
| Reach | 370 mm | 378 mm | 381 mm | 383 mm | 386 mm | 393 mm |
| Top Tube Length | 520 mm | 532 mm | 544 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 152 mm | 165 mm | 180 mm | 205 mm | 230 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 997 mm | 1000 mm | 1002 mm | 1005 mm | 1014 mm | 1029 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 735 mm | 761 mm | 779 mm | 797 mm | 817 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

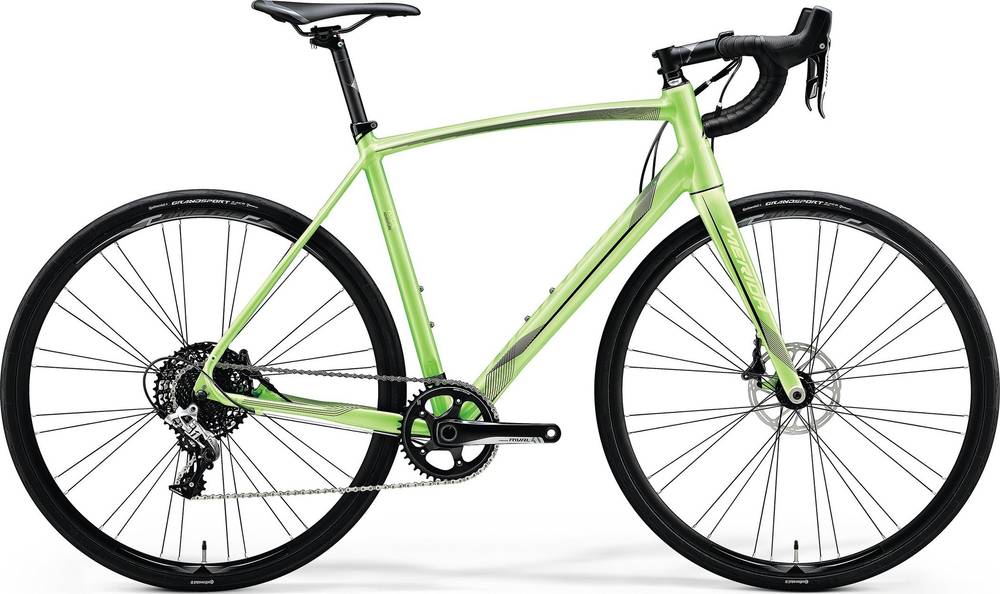

RIDE DISC ADVENTURE completes the Merida Ride model. 74 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
RIDE DISC ADVENTURE weighs 9.59 kg (21.14 lbs) and is much heavier than the average. To sum up, it’s 16.95% heavier than the average weight of Endurance bikes.
RIDE DISC ADVENTURE components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the RIDE DISC ADVENTURE bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida RIDE DISC ADVENTURE has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
