Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Sora, Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE
Suspension Fork
Road carbon comp
Drivetrain
Rear Derailleur
Shimano Sora SS
Front Derailleur
Shimano Claris D
Shift Levers
Shimano Claris
Cassette
Sunrace CS-8S 11-28
Crank
FSA Tempo 50-34
Bottom Bracket
Cartridge Bearing
Chain
KMC 8s
Wheels
Front Hub
OV alloy / OV cassette
Rear Hub
OV alloy / OV cassette
Rims
MERIDA comp 20 pair
Tires
Maxxis Detonator 23
Brakes
Brakes
ROAD Dual Pivot
Brake Levers
attached
Cockpit
Handlebar
MERIDA Anatomic road OS
Headset
Big Conoid semi neck pro
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA road comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 524 mm | 534 mm | 547 mm | 560 mm | 579 mm | 598 mm | 624 mm |
| Reach | 382 mm | 373 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 708 mm | 731 mm | 756 mm | 774 mm | 794 mm | 812 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

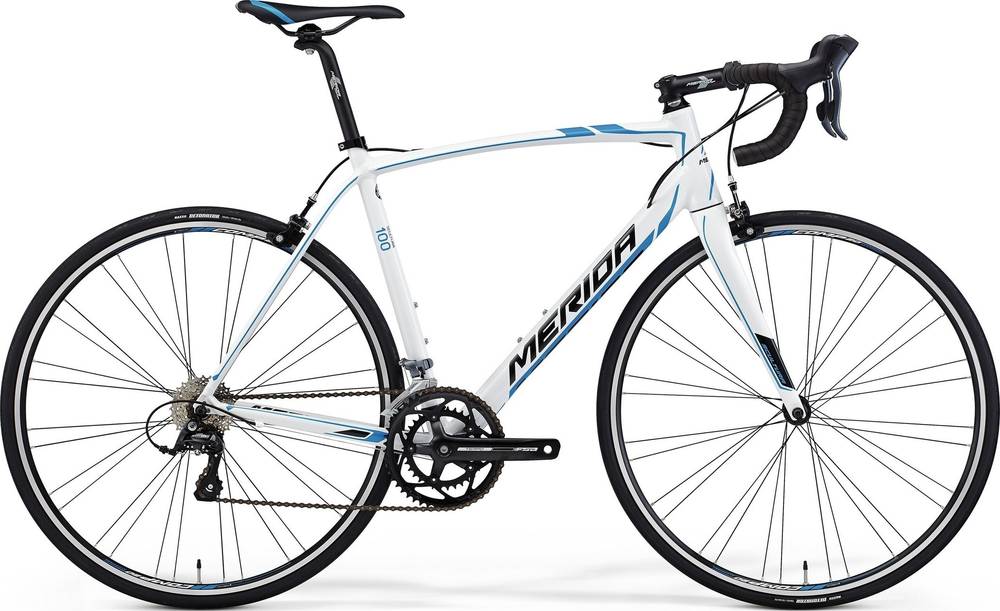

Scultura 100 is a Merida Scultura model. Merida launched 214 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Scultura 100 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Scultura 100 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
