Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Sora, Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE
Suspension Fork
Road carbon comp
Drivetrain
Rear Derailleur
Shimano Sora SS
Front Derailleur
Shimano Claris D
Shift Levers
Shimano Claris
Cassette
Sunrace CS-8S 11-28
Crank
FSA Tempo 50-34 (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
8s
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp 20 pair
Spokes
Black stainless
Tires
Maxxis Dolomites 23 fold
Brakes
Brakes
ROAD Dual Pivot
Brake Levers
Shimano Claris
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA BB410P/No.55E
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA road comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 524 mm | 534 mm | 547 mm | 560 mm | 579 mm | 598 mm | 624 mm |
| Reach | 382 mm | 373 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 708 mm | 731 mm | 756 mm | 774 mm | 794 mm | 812 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

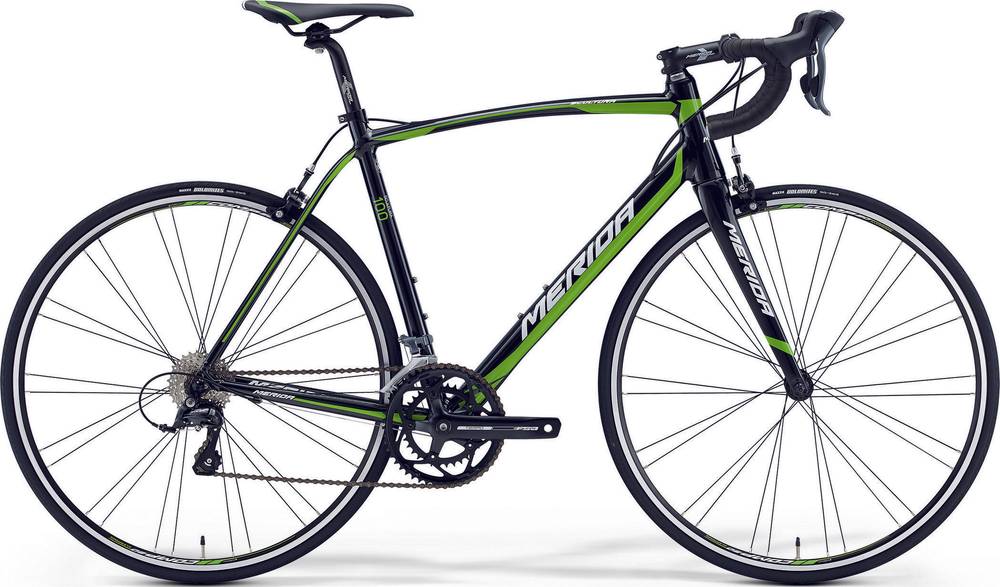

SCULTURA 100 belongs to the Merida Scultura model. 214 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 9.4 kg (20.72 lbs), Merida bike is much heavier than average. To sum up, it’s 37.83% heavier than the average weight of Race bikes.
SCULTURA 100 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on SCULTURA 100 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA 100 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
