Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Sora, Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano Sora SS
Front Derailleur
Shimano Claris D
Shift Levers
Shimano Claris
Cassette
Sunrace CS8 11-28
Crank
FSA Tempo 50-34
Chain
Chain 8s
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp SL 20 pair
Spokes
Black stainless
Tires
Maxxis Dolomites 25 fold
Brakes
Brakes
ROAD Dual Pivot
Brake Levers
Shimano Claris
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid semi neck pro
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA road comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.41 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 36 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 71 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 390 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 703 mm | 726 mm | 750 mm | 768 mm | 785 mm | 804 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

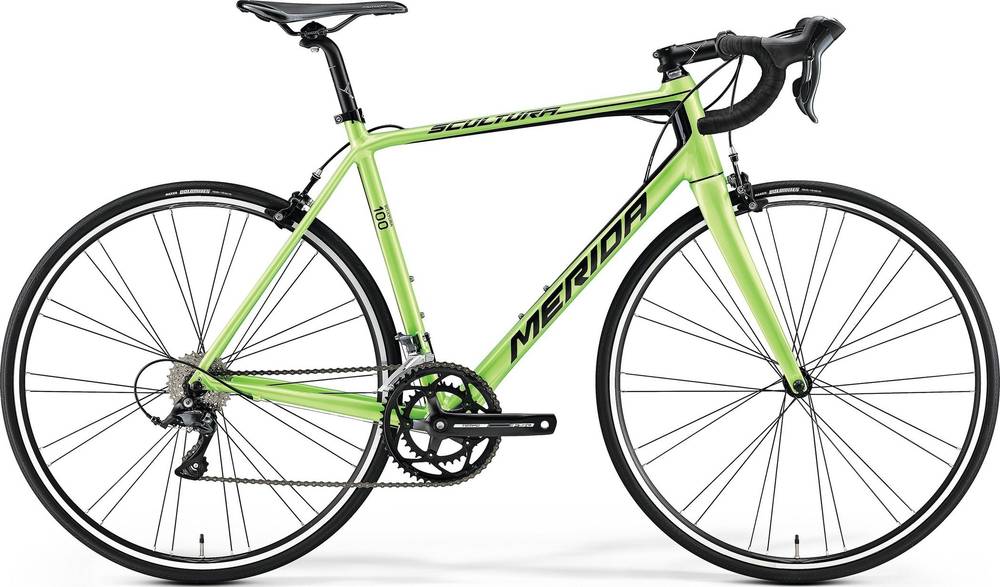

SCULTURA 100 completes the Merida Scultura model. There are 214 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, SCULTURA 100 has a weight of 9.43 kg (20.79 lbs). In conclusion, the average Race bike weighs 38.27% less than SCULTURA 100.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The SCULTURA 100 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA 100 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
