Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE JULIET
Suspension Fork
SCULTURA CF
Drivetrain
Rear Derailleur
Shimano Claris, GS
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris
Cassette
Sunrace CS8, 11-28 teeth, 8 speed
Crank
FSA Tempo, 50-34 teeth
Chain
KMC M700
Wheels
Front Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rear Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rims
MERIDA Comp SL, 17mm inner width, 24mm height
Spokes
Black stainless
Tires
Maxxis Dolomites, 700x25C, fold
Brakes
Brakes
Lee Chi ROAD Dual Pivot
Brake Levers
Shimano Claris
Cockpit
Handlebar
MERIDA Expert SL
Headset
MERIDA 2341 Neck, 2191022388
Seat
Saddle
MERIDA Juliet Sport
Seatpost
MERIDA Comp CC, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | XXXS | XXS | XS | SM | SM/MD |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.38 mm | 1.42 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 575 mm | 581 mm | 583 mm | 584 mm | 580 mm | 586 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 36 mm | 45 mm |
| Trail | 64 mm | 61 mm | 68 mm | 68 mm | 71 mm | 56 mm |
| Stack | 489 mm | 496 mm | 516 mm | 526 mm | 539 mm | 552 mm |
| Reach | 355 mm | 363 mm | 373 mm | 370 mm | 381 mm | 383 mm |
| Top Tube Length | 487 mm | 497 mm | 512 mm | 517 mm | 527 mm | 542 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 969 mm | 975 mm | 979 mm | 980 mm | 976 mm | 982 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 651 mm | 666 mm | 694 mm | 717 mm | 741 mm | 759 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

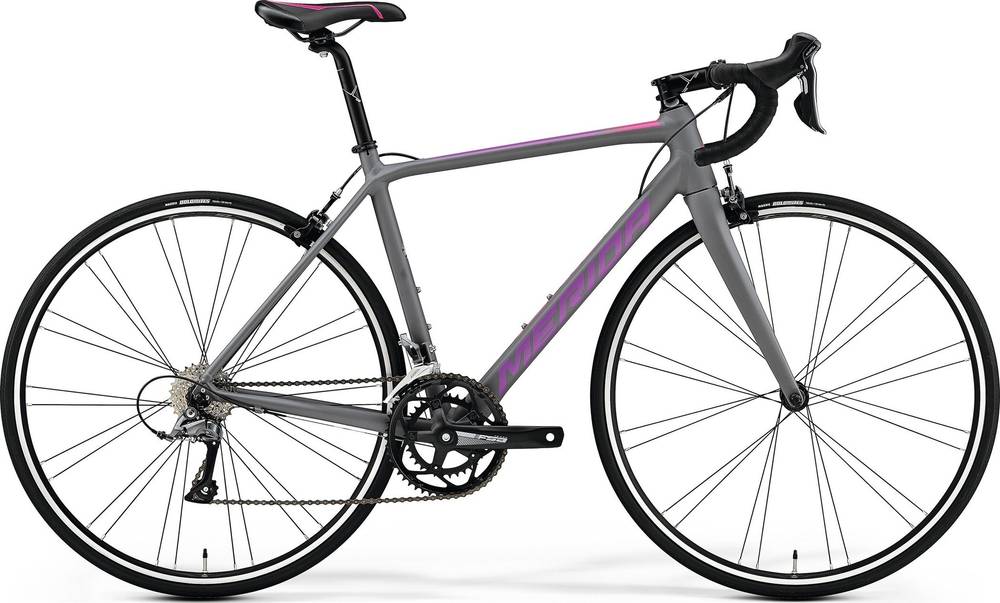

Model Overview
SCULTURA 100 JULIET is part of the Merida Scultura model. Merida released 214 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida SCULTURA 100 JULIET it’s weighing 9.52 kg (20.99 lbs). At this weight, is much heavier than average. In short, the average Race bike weight is 39.59% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the SCULTURA 100 JULIET model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA 100 JULIET comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
