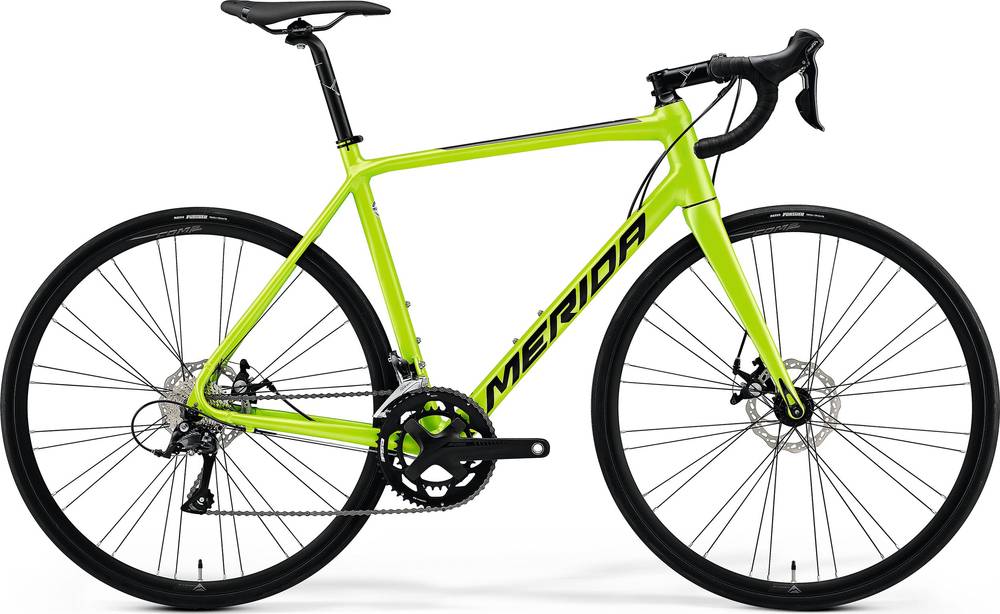

Merida SCULTURA 200 2021
2021 Road
Estimate price |
1,405$
Weight | 9.92 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE BSA, material: aluminium, 700x28C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit bottom bracket standard
Suspension Fork
SCULTURA CF2 disc, 700x28C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Sora, GS
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Microshift CS-9S, 11-28 teeth, 9 speed
Crank
FSA Omega, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
FSA Mega Exo BSA
Chain
KMC M99
Wheels
Front Hub
Joytech D791SB / Joytech D142TSE, 100x12mm width front hub, 32 spoke holes, 6 bolt, 135x9mm width rear hub, 32 spoke holes, 6 bolt
Rear Hub
Joytech D791SB / Joytech D142TSE, 100x12mm width front hub, 32 spoke holes, 6 bolt, 135x9mm width rear hub, 32 spoke holes, 6 bolt
Rims
MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Pursuer, 700x25C, fold
Brakes
Brakes
Promax DSK-330R, Mechanical disc
Brake Levers
Shimano Sora
Disk Rotors
Promax 160G, 160mm
Cockpit
Stem
MERIDA COMP CC, 31.8mm diameter, material: aluminium, -6° stem angle, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 531 mm | 544 mm | 557 mm | 576 mm | 595 mm | 621 mm |
| Reach | 375 mm | 377 mm | 388 mm | 392 mm | 396 mm | 403 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 981 mm | 987 mm | 997 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 764 mm | 781 mm | 800 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SCULTURA 200 is a Merida Scultura model. Merida launched 214 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Merida SCULTURA RIM 300 2021 has a starting price of 986$. Merida SCULTURA 9000-E 2021 on the other hand is the most expensive at 10461$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 1277$. In conclusion, this bike price is 162.33% lower than the price of the average Race bike.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.92 kg (21.87 lbs), Merida bike is much heavier than average. To sum up, it’s 45.45% heavier than the average weight of Race bikes.
SCULTURA 200 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Merida SCULTURA 200 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 200 has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
