Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE, material: aluminium, 700x28C max. wheelsize, 100x12/ 142x12 mm axle standard, Pressfit bottom bracket standard
Suspension Fork
SCULTURA CF2 disc, 700x28C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Sora, GS
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora
Cassette
Microshift CS-9S, 11-28 teeth, 9 speed
Crank
FSA Omega, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
FSA BB-AL86/Ø19
Chain
KMC M99
Wheels
Front Hub
Joytech D981-12 / Joytech D982TSE-R, 100x12 mm width front hub, 28 spoke holes, 6 bolt, 142x12 mm width rear hub, 28 spoke holes, 6 bolt
Rear Hub
Joytech D981-12 / Joytech D982TSE-R, 100x12 mm width front hub, 28 spoke holes, 6 bolt, 142x12 mm width rear hub, 28 spoke holes, 6 bolt
Rims
MERIDA COMP SL, 17 mm inner width, 22 mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Pursuer, 700x25C, fold, Rear: Maxxis Pursuer, 700x25C, fold
Brakes
Brakes
Promax. DSK-330R, Mechanical disc
Brake Levers
Shimano Sora
Cockpit
Stem
MERIDA COMP CC, 31.8 mm diameter, material: aluminium, -6° stem angle, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT SLII, material: aluminium, 380 mm(XXS), 400 mm (XS), 420 mm (S-M-L), 440 mm (XL)
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 27.2 mm diameter, 5 mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.438 mm | 1.472 mm | 1.505 mm | 1.544 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 542 mm | 555 mm | 574 mm | 593 mm | 619 mm |
| Reach | 375 mm | 386 mm | 390 mm | 394 mm | 401 mm |
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 979 mm | 985 mm | 995 mm | 1005 mm | 1014 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 744 mm | 762 mm | 779 mm | 798 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

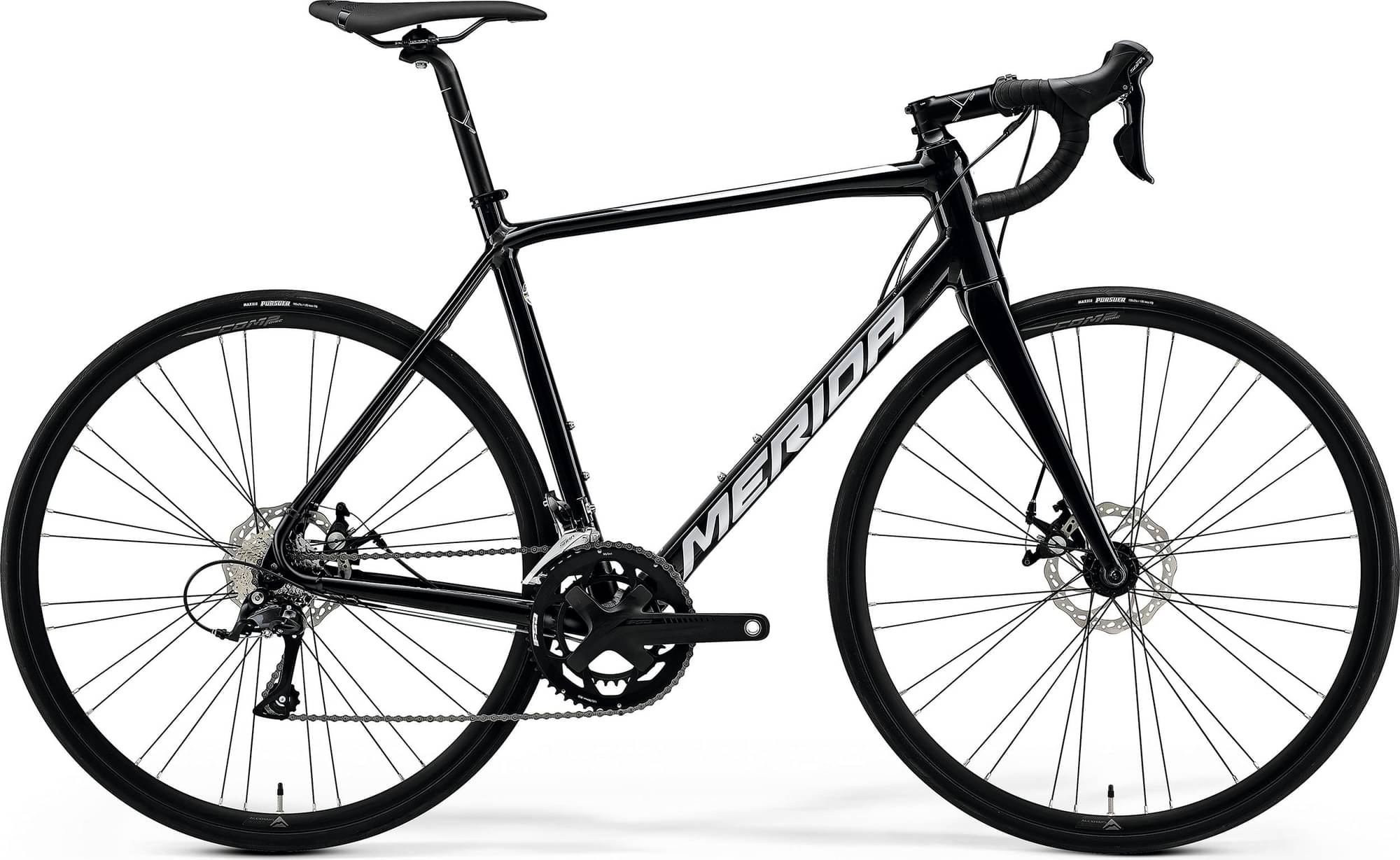

SCULTURA 200 is part of the Merida Scultura model. Merida released 232 bikes variations of this model so far. You can easily view all of the Merida Scultura bikes models from 2024, here.
Model range prices
The most economical model, the Merida SCULTURA 200 2024 has a starting price of 1027$. Merida SCULTURA 10K 2024 on the other hand is the most expensive at 8988$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Merida released this model in 2024, its price was 1027$. Comparing this to the average Race bike price, we see that the price is 226.19% lower.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the SCULTURA 200 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
