Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE
Suspension Fork
Road carbon comp
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA comp 24 pair
Spokes
Black stainless
Tires
Maxxis Dolomites 23 fold
Brakes
Brakes
Merida Road Pro
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA BB410P/No.55E
Seat
Saddle
MERIDA Race 5
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 524 mm | 534 mm | 547 mm | 560 mm | 579 mm | 598 mm | 624 mm |
| Reach | 382 mm | 373 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 708 mm | 731 mm | 756 mm | 774 mm | 794 mm | 812 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

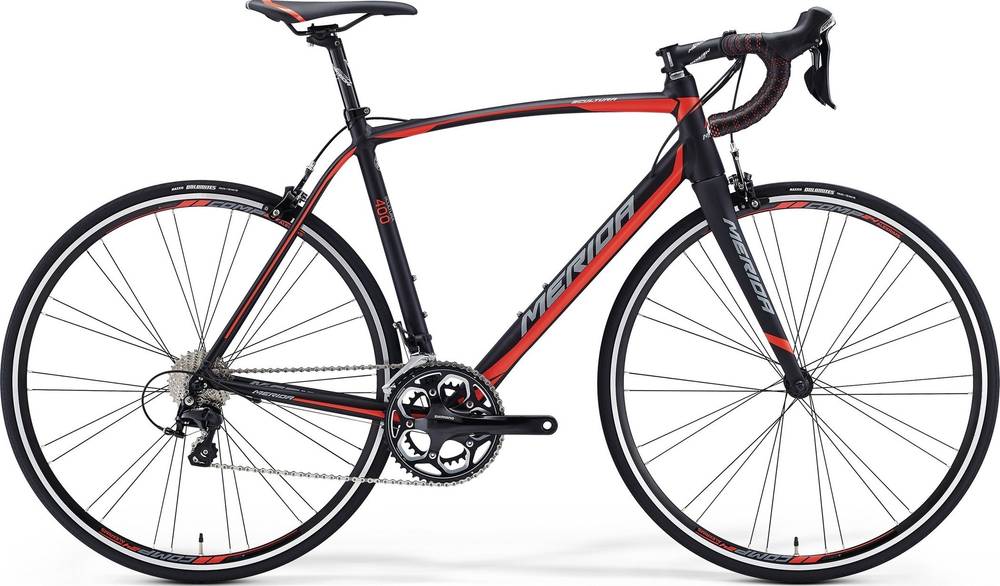

SCULTURA 400 is a Merida Scultura model. Merida launched 214 bikes of this model so far. You can easily view all of the Merida Scultura bikes models from 2016, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 8.9 kg (19.62 lbs), Merida bike is much heavier than average. In other words, this model is 30.5% heavier than the average Race bike.
Overview of components
Fork material
SCULTURA 400 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the SCULTURA 400 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
