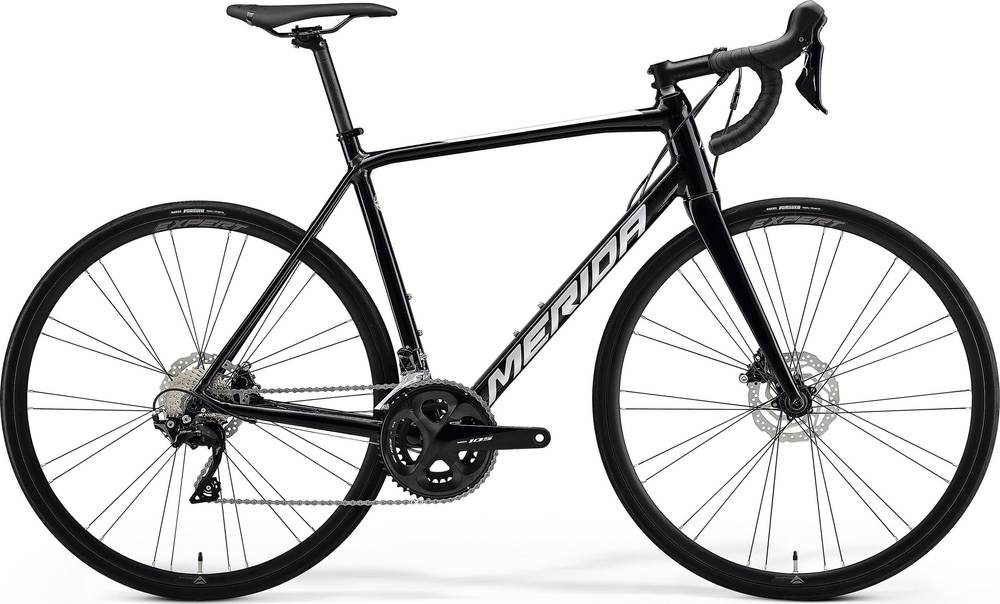

Merida SCULTURA 400 2021
2021 Road
Estimate price |
2,175$
Weight | 8.98 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE, material: aluminium, 700x28C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit bottom bracket standard
Suspension Fork
SCULTURA CF2 disc, 700x28C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
KMC X11
Wheels
Front Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Pursuer, 700x25C, fold
Brakes
Brakes
Shimano 105, Hydraulic disc
Brake Levers
Shimano 105 R7000
Disk Rotors
Shimano RT10, 160mm
Cockpit
Stem
MERIDA EXPERT CC, 31.8mm diameter, material: aluminium, -5° stem angle, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 580 mm | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 55 mm | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 68 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 491 mm | 512 mm | 522 mm | 535 mm | 548 mm | 567 mm | 586 mm | 612 mm |
| Reach | 359 mm | 369 mm | 366 mm | 368 mm | 379 mm | 383 mm | 387 mm | 394 mm |
| Top Tube Length | 493 mm | 508 mm | 513 mm | 523 mm | 538 mm | 553 mm | 568 mm | 583 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 971 mm | 975 mm | 976 mm | 972 mm | 978 mm | 988 mm | 998 mm | 1007 mm |
| Bottom Bracket Drop | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 661 mm | 690 mm | 713 mm | 737 mm | 755 mm | 772 mm | 791 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
SCULTURA 400 is part of the Merida Scultura model. There are 214 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Merida SCULTURA RIM 300 2021 has a starting price of 986$. Merida SCULTURA 9000-E 2021 on the other hand is the most expensive at 10461$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Merida SCULTURA 400 price was 1977$. Doing a quick comparison, we notice that SCULTURA 400 price is 69.45% lower than the average cost of a Race bike.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, SCULTURA 400 has a weight of 8.98 kg (19.8 lbs). In conclusion, the average Race bike weighs 31.67% less than SCULTURA 400.
Overview of components
Fork material
SCULTURA 400 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The SCULTURA 400 2021 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 400 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
