Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA comp 24 pair
Spokes
Black stainless
Tires
Continental Ultra Sport II 23 fold
Brakes
Brakes
Merida Road Pro
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA BB410P/No.55E
Seat
Saddle
MERIDA Sport Pro
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 55 mm | 56 mm | 53 mm |
| Stack | 515 mm | 534 mm | 547 mm | 560 mm | 577 mm | 598 mm | 624 mm |
| Reach | 385 mm | 373 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 718 mm | 722 mm | 755 mm | 776 mm | 791 mm | 807 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

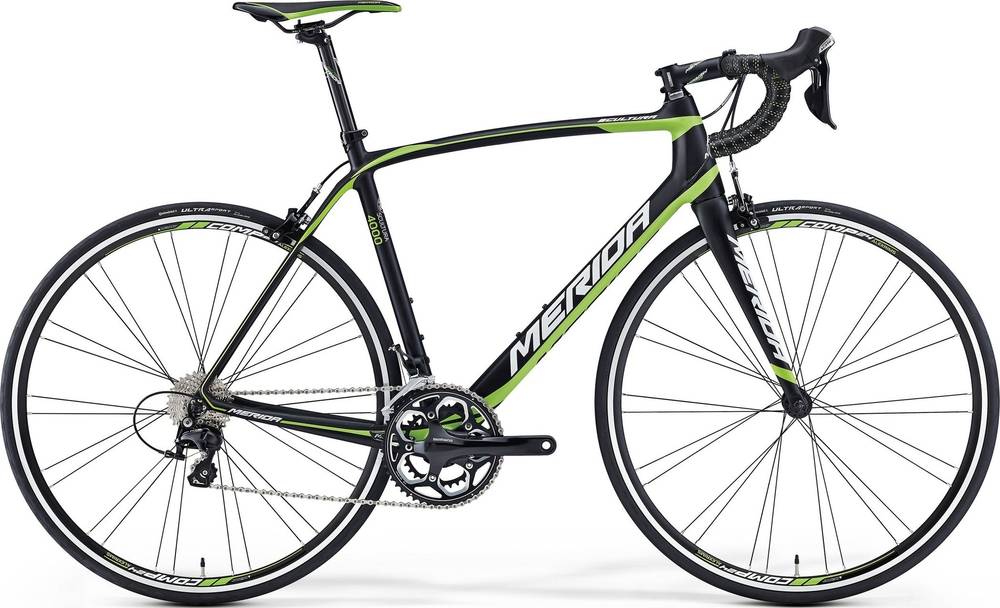

Model Overview
SCULTURA 4000 is a Merida Scultura model. 214 bikes variations carry this model name so far. You can easily view all of the Merida Scultura bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida SCULTURA 4000 it’s weighing 8.4 kg (18.52 lbs). At this weight, is much heavier than average. In short, the average Race bike weight is 23.17% lower than this one.
SCULTURA 4000 components
Fork material
SCULTURA 4000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Merida SCULTURA 4000 2016, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA 4000 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
