Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano 105 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp SL 24 pair
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
MERIDA Road Pro
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 53 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 373 mm | 379 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 705 mm | 723 mm | 753 mm | 772 mm | 791 mm | 810 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

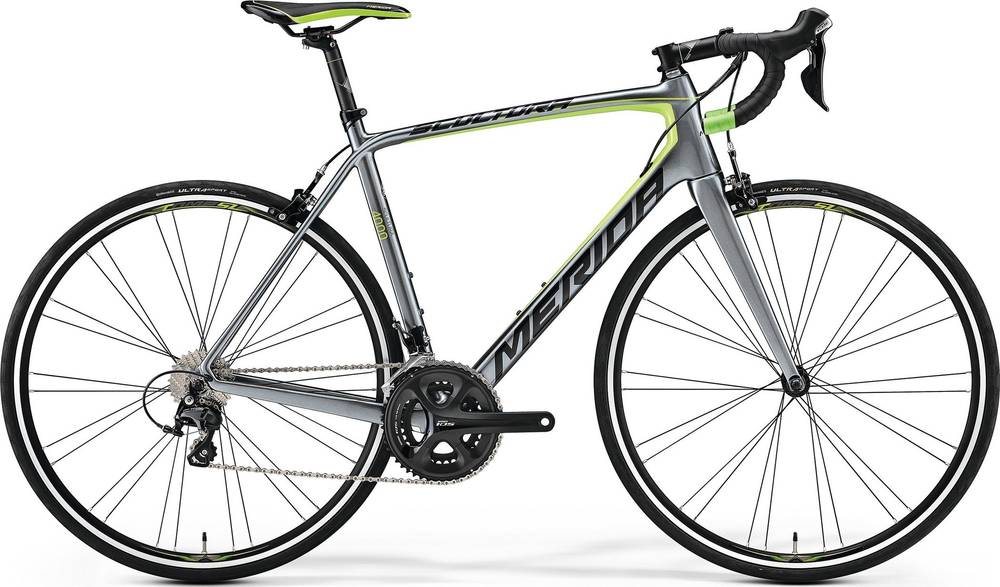

SCULTURA 4000 belongs to the Merida Scultura model. There are 214 bikes that carry this model name. Take a sneak peek at all Merida Scultura bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.21 kg (18.1 lbs), the SCULTURA 4000 model is much heavier than average. To sum up, it’s 20.38% heavier than the average weight of Race bikes.
SCULTURA 4000 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the SCULTURA 4000 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA 4000 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
