Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Pro full carbon tapered fork
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105, 22 speed
Cassette
Shimano CS-5800, 11 speed, 11-28
Crank
Shimano 105 50-34 teeth
Chain
KMC X11-1
Wheels
Front Hub
Sealed bearing with quick release
Rear Hub
Sealed bearing with quick release
Rims
MERIDA Expert SL
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 25c folding
Brakes
Brakes
Shimano 105
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
MERIDA M2331
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Carbon Comp 15mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | XXXS | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.44 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 574 mm | 580 mm | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 54 mm | 54 mm | 53 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 60 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 490 mm | 496 mm | 516 mm | 526 mm | 539 mm | 552 mm | 571 mm | 590 mm | 616 mm |
| Reach | 355 mm | 363 mm | 364 mm | 370 mm | 372 mm | 383 mm | 387 mm | 391 mm | 398 mm |
| Top Tube Length | 487 mm | 497 mm | 512 mm | 517 mm | 527 mm | 542 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 976 mm | 979 mm | 980 mm | 976 mm | 982 mm | 992 mm | 1002 mm | 1011 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 661 mm | 672 mm | 696 mm | 714 mm | 744 mm | 763 mm | 782 mm | 801 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

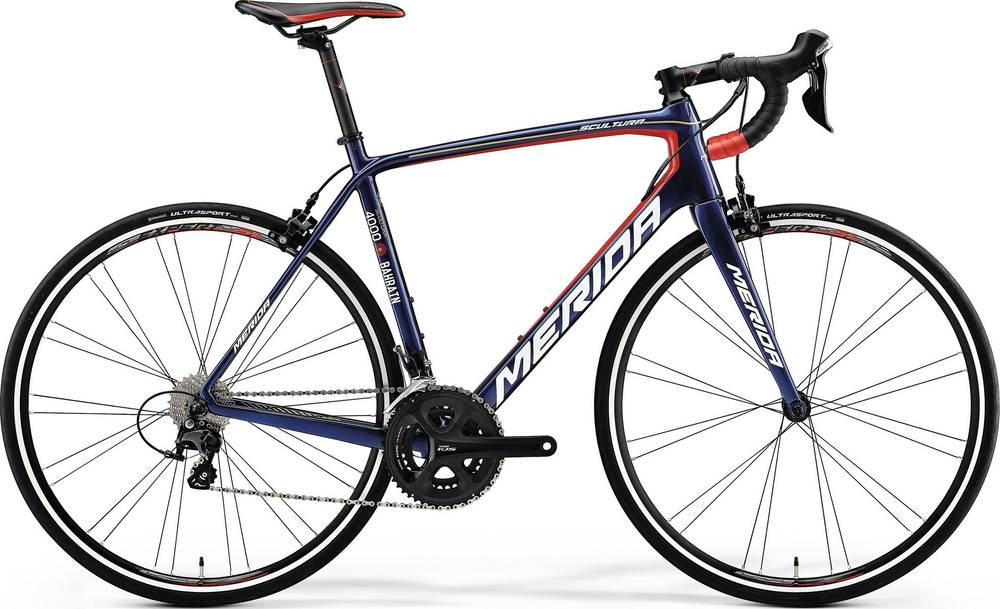

SCULTURA 4000 completes the Merida Scultura model. 214 bikes variations carry this model name so far. Take a sneak peek at all Merida Scultura bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.21 kg (18.1 lbs), Merida bike is much heavier than average. In conclusion, the average Race bike weighs 20.38% less than SCULTURA 4000.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the SCULTURA 4000 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 4000 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
