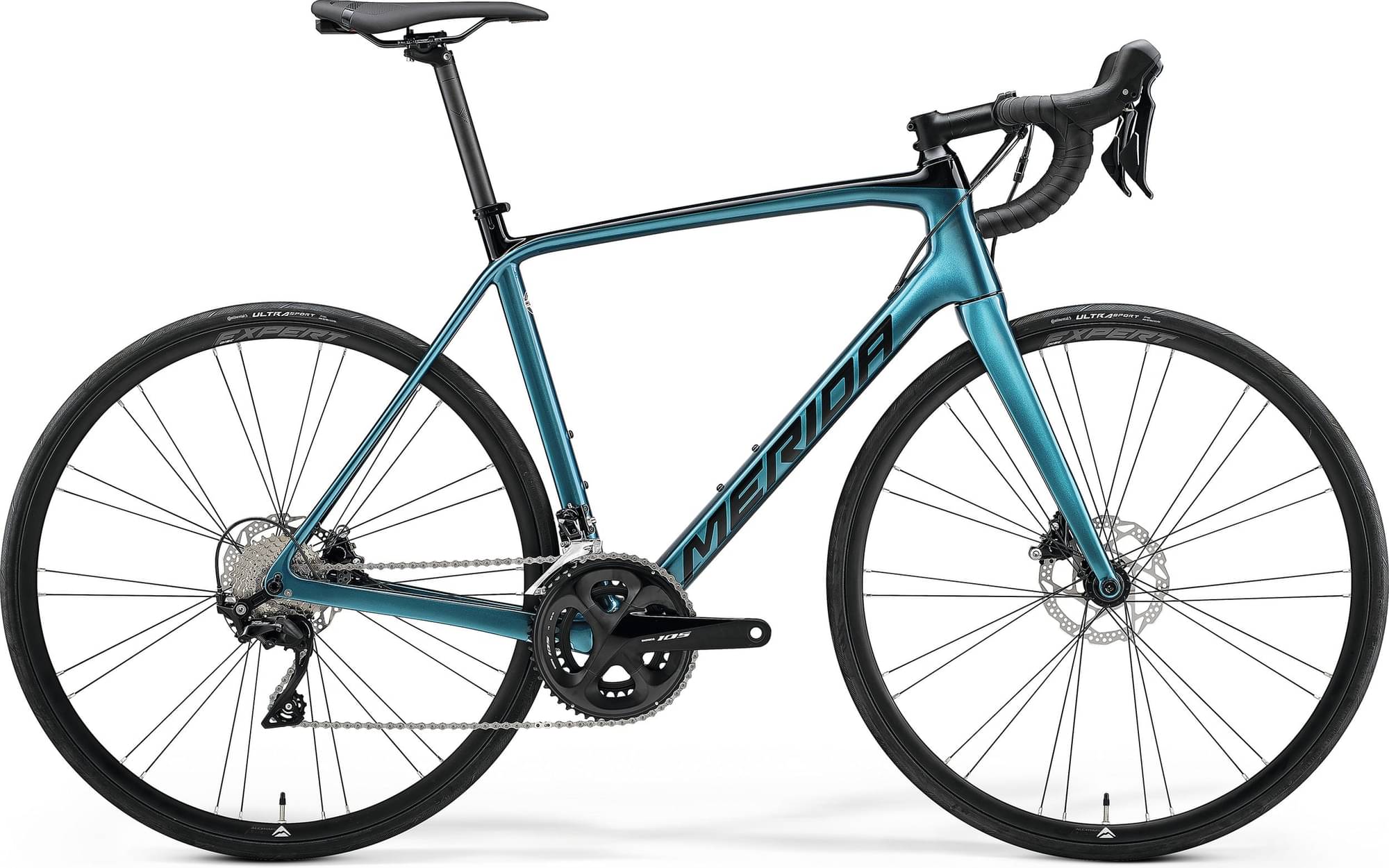

Merida SCULTURA 4000 2021
2021 Road
Estimate price |
2,374$
Weight | 8.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF2, material: carbon, 700x28C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit bottom bracket standard
Suspension Fork
SCULTURA CF2 disc, 700x28C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
BSA, 100mm, threaded
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK270R, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport III, 700x25C, fold
Brakes
Brakes
Shimano 105, Hydraulic disc
Brake Levers
Shimano 105 R7000
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL; V-mount; incl. MERIDA minitool, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 68 mm | 68 mm | 63 mm | 56 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm |
| Reach | 382 mm | 379 mm | 381 mm | 392 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 707 mm | 726 mm | 756 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
SCULTURA 4000 completes the Merida Scultura model. Merida released 214 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Merida SCULTURA RIM 300 2021 is the most economical model, with a starting price of 986$. Merida SCULTURA 9000-E 2021 on the other hand costs 10461$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Merida SCULTURA 4000 price was 2133$. Comparing the average cost of a Race bike to this one, you will see that SCULTURA 4000 price is 57.06% smaller.
Race bikes average weight
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 8.46 kg (18.65 lbs), Merida bike is much heavier than average. In short, the average Race bike weight is 24.05% lower than this one.
Overview of components
Fork material
SCULTURA 4000 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The SCULTURA 4000 2021 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA 4000 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
