Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34
Bottom Bracket
attached
Chain
FSA F11S
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA comp 24 pair
Tires
Continental Ultra Sport II 23 fold
Brakes
Brakes
Merida Road Pro
Brake Levers
attached
Cockpit
Handlebar
Controltech Fuego HMS lady
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Juliet Sport
Seatpost
Controltech T5 SB10 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 55 mm |
| Stack | 515 mm | 534 mm | 547 mm | 560 mm | 577 mm |
| Reach | 385 mm | 373 mm | 381 mm | 392 mm | 396 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 150 mm | 170 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 784 mm | 791 mm | 822 mm | 842 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

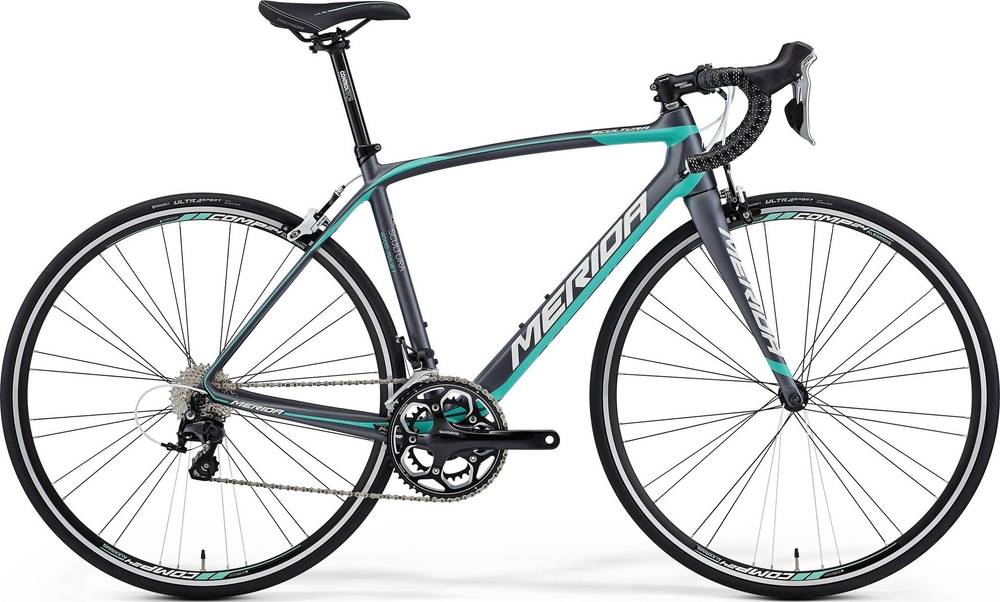

Scultura 4000 Juliet belongs to the Merida Scultura model. Merida released 214 bikes variations of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2015, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Scultura 4000 Juliet components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Scultura 4000 Juliet model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Scultura 4000 Juliet is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
