Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA comp 24 pair
Spokes
Black+White stainless
Tires
Continental Ultra Sport II 23 fold
Brakes
Brakes
Merida Road Pro
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Compact road OS lady
Headset
FSA BB410P/No.55E
Seat
Saddle
Juliet Sport Pro
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.43 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 577 mm | 580 mm | 586 mm | 596 mm | 606 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm |
| Trail | 68 mm | 68 mm | 62 mm | 56 mm | 55 mm | 56 mm |
| Stack | 515 mm | 534 mm | 547 mm | 560 mm | 577 mm | 598 mm |
| Reach | 385 mm | 373 mm | 381 mm | 392 mm | 396 mm | 400 mm |
| Top Tube Length | 521 mm | 524 mm | 536 mm | 551 mm | 566 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 982 mm | 985 mm | 991 mm | 1001 mm | 1011 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 718 mm | 722 mm | 755 mm | 776 mm | 791 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

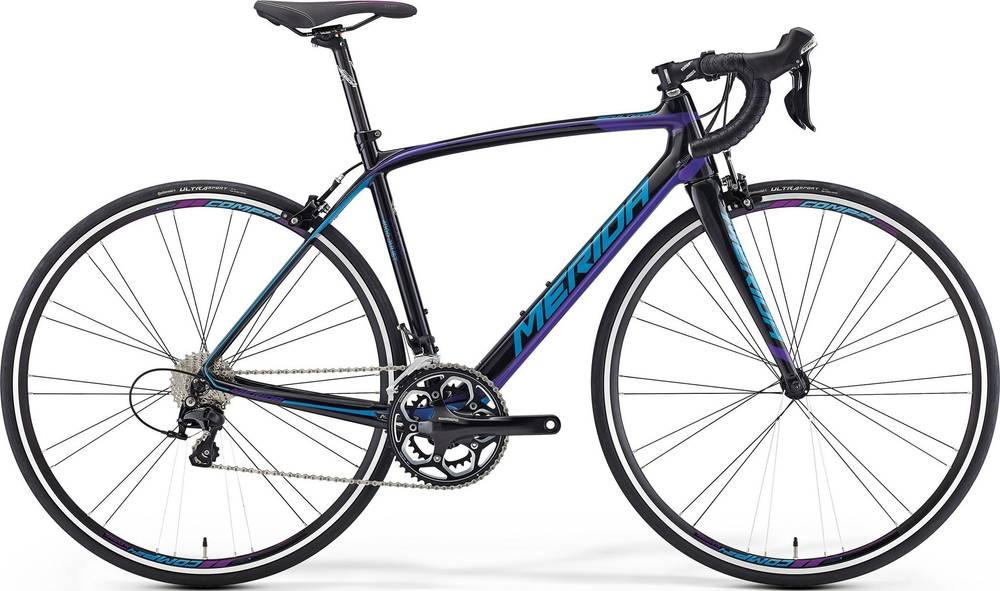

SCULTURA 4000 JULIET is a Merida Scultura model. There are 214 bikes that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Race bikes
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.3 kg (18.3 lbs), the SCULTURA 4000 JULIET model is much heavier than average. In conclusion, the average Race bike weighs 21.7% less than SCULTURA 4000 JULIET.
SCULTURA 4000 JULIET components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the SCULTURA 4000 JULIET model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 4000 JULIET has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
