Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Road carbon Race
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano Ultegra
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA Expert SL pair
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
Shimano R561
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 53 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 373 mm | 379 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 705 mm | 723 mm | 753 mm | 772 mm | 791 mm | 810 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

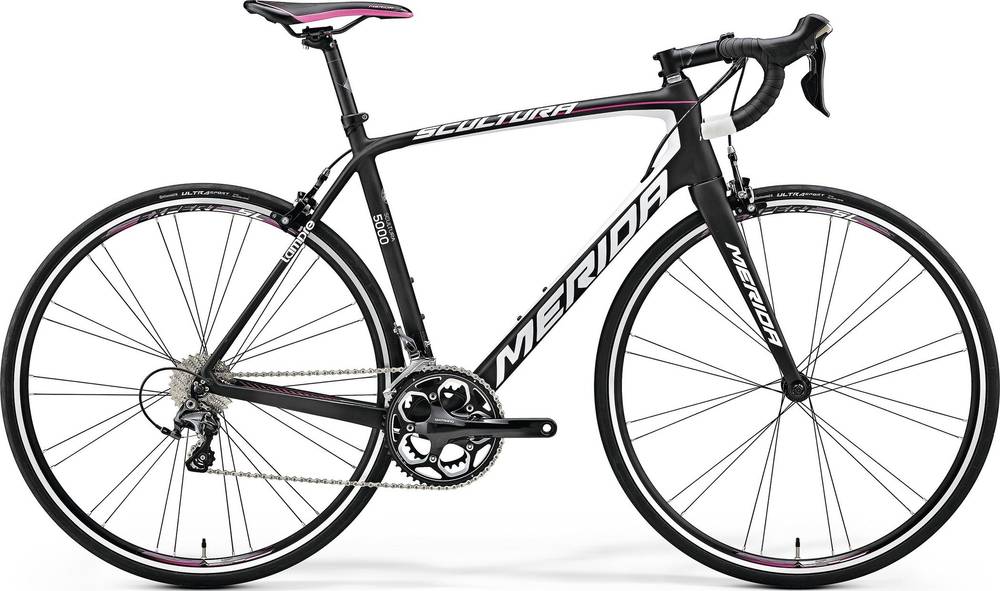

SCULTURA 5000 completes the Merida Scultura model. Merida launched 214 bikes of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Race bikes average weight
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.02 kg (17.68 lbs), the SCULTURA 5000 model is much heavier than average. In other words, this model is 17.6% heavier than the average Race bike.
SCULTURA 5000 components
Fork material
SCULTURA 5000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the SCULTURA 5000 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
