Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
Pro full carbon tapered fork
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra, 22 speed
Cassette
Shimano CS-5800, 11 speed, 11-28
Crank
Shimano RS 510 50-34
Chain
KMC X11-1
Wheels
Front Hub
Sealed bearing with quick release
Rear Hub
Sealed bearing with quick release
Rims
MERIDA Expert SL
Spokes
Double Butted Black stainless
Tires
Continental Grand Sport Race 25c folding
Brakes
Brakes
Shimano Ultegra levers with Shimano R561 calipers
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
MERIDA M2331
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Carbon Comp 15mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | XXXS | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.44 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 574 mm | 580 mm | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 54 mm | 54 mm | 53 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 60 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 490 mm | 496 mm | 516 mm | 526 mm | 539 mm | 552 mm | 571 mm | 590 mm | 616 mm |
| Reach | 355 mm | 363 mm | 364 mm | 370 mm | 372 mm | 383 mm | 387 mm | 391 mm | 398 mm |
| Top Tube Length | 487 mm | 497 mm | 512 mm | 517 mm | 527 mm | 542 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 976 mm | 979 mm | 980 mm | 976 mm | 982 mm | 992 mm | 1002 mm | 1011 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 661 mm | 672 mm | 696 mm | 714 mm | 744 mm | 763 mm | 782 mm | 801 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

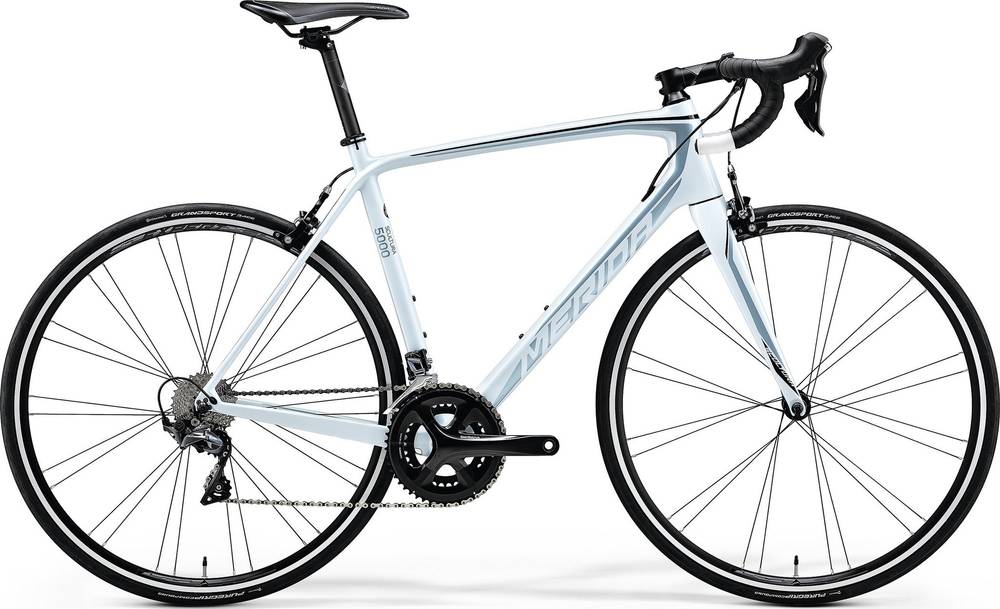

SCULTURA 5000 is a Merida Scultura model. Merida released 214 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
SCULTURA 5000 weighs 8.33 kg (18.36 lbs) and is much heavier than the average. In conclusion, the average Race bike weighs 22.14% less than SCULTURA 5000.
SCULTURA 5000 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The SCULTURA 5000 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
