Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF2
Suspension Fork
SCULTURA CF2
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra DF
Shift Levers
Shimano Ultegra
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano Ultegra, 50-34 teeth
Chain
KMC X11
Wheels
Rims
Fulcrum Racing 600, 100x9mm width front hub, 130x9mm width rear hub, 17mm inner width, 24,5 / 27,5mm height
Spokes
attached
Tires
Continental Grand Sport Race, 700x25C, fold
Brakes
Brakes
Shimano Ultegra / Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert SL
Headset
MERIDA M2331 Neck, 2191026445
Seat
Saddle
Prologo Nago Evo
Seatpost
MERIDA Expert CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | XXXS | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.44 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 574 mm | 580 mm | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 54 mm | 54 mm | 53 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 60 mm | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 490 mm | 496 mm | 516 mm | 526 mm | 539 mm | 552 mm | 571 mm | 590 mm | 616 mm |
| Reach | 355 mm | 363 mm | 364 mm | 370 mm | 372 mm | 383 mm | 387 mm | 391 mm | 398 mm |
| Top Tube Length | 487 mm | 497 mm | 512 mm | 517 mm | 527 mm | 542 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 976 mm | 979 mm | 980 mm | 976 mm | 982 mm | 992 mm | 1002 mm | 1011 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 661 mm | 672 mm | 696 mm | 714 mm | 744 mm | 763 mm | 782 mm | 801 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

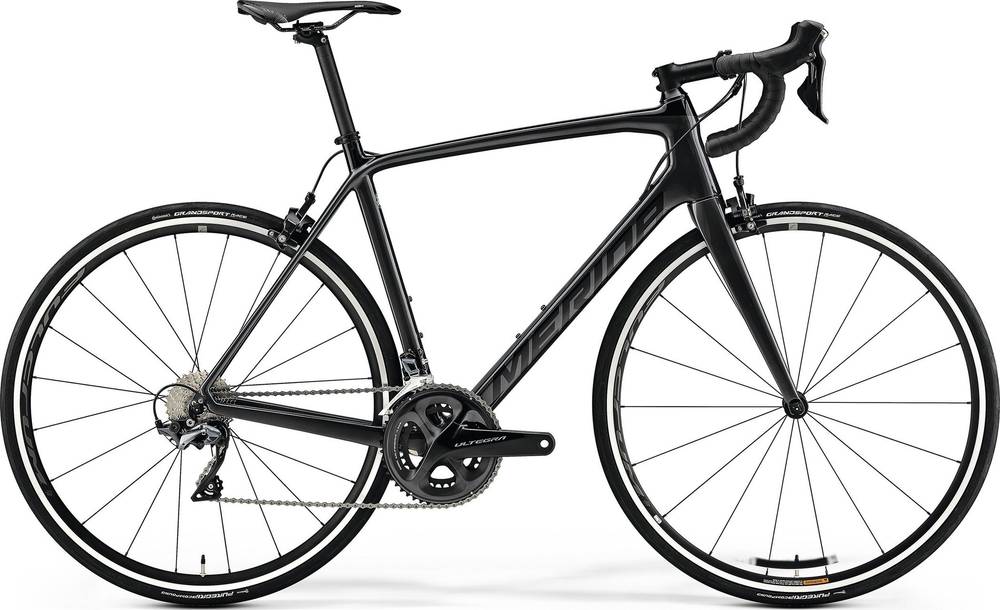

Model Overview
SCULTURA 6000 is a Merida Scultura model. Merida launched 214 bikes of this model so far. You can easily view all of the Merida Scultura bikes models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 8.02 kg (17.68 lbs), the SCULTURA 6000 model is much heavier than average. In conclusion, the average Race bike weighs 17.6% less than SCULTURA 6000.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Merida SCULTURA 6000 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 6000 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
