Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF4
Suspension Fork
Scultura Mid Superlite
Drivetrain
Rear Derailleur
Shimano Ultegra SS Di2
Front Derailleur
Shimano Ultegra D Di2
Shift Levers
Shimano Ultegra Di2
Cassette
Shimano CS-6800-11 11-28
Crank
Shimano Ultegra 50-34 (BB386)
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11EL
Wheels
Rims
Fulcrum Racing 3
Tires
Continental Grand Sport Race 25 fold
Brakes
Brakes
Shimano Ultegra / Shimano Ultegra-direct
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
FSA Gossamer compact OS
Headset
FSA No.44
Seat
Saddle
Prologo Scratch 2 T2.0
Seatpost
Merida EGM-light-27.2 SB15 [E]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 572 mm | 572 mm | 575 mm | 581 mm | 591 mm | 600 mm | 610 mm |
| Rake | 45 mm | 40 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 68 mm | 70 mm | 62 mm | 52 mm | 52 mm | 52 mm | 48 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 969 mm | 969 mm | 972 mm | 978 mm | 988 mm | 997 mm | 1007 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

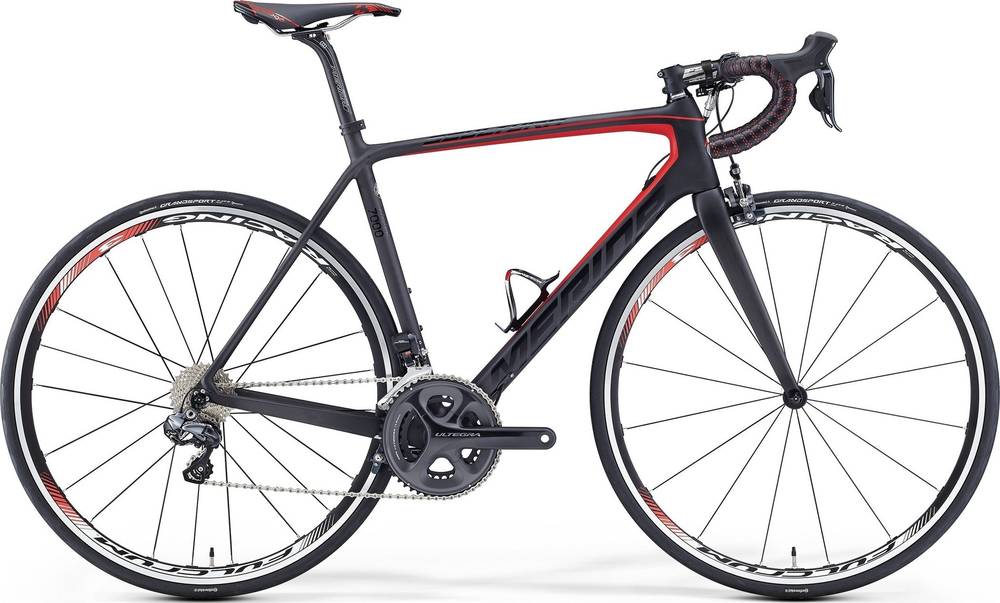

SCULTURA 7000-E belongs to the Merida Scultura model. 214 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
SCULTURA 7000-E weighs 7.1 kg (15.65 lbs) and is slightly heavier than the average. In short, the average Race bike weight is 4.11% lower than this one.
SCULTURA 7000-E components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the SCULTURA 7000-E bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA 7000-E is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
