Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF5
Suspension Fork
Scultura Mid Superlite
Drivetrain
Rear Derailleur
SRAM Red
Front Derailleur
SRAM Red
Shift Levers
SRAM Red
Cassette
SRAM PG1190 11-28
Crank
SRAM Red 50-34 (BB386)
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11SL DLC
Wheels
Rims
RC 28 Spline C Mon Chasseral
Tires
Continental Grand Prix 4000S 25 KV
Brakes
Brakes
SRAM Red / Merida Road pro direct
Brake Levers
SRAM Red
Cockpit
Handlebar
FSA K-Force Compact OS
Headset
FSA No.44
Seat
Saddle
Selle Italia SLR KIT CARBONIO
Seatpost
Merida EGM-light-27.2 SB15
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 572 mm | 572 mm | 575 mm | 581 mm | 591 mm | 600 mm | 610 mm |
| Rake | 45 mm | 40 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 68 mm | 70 mm | 62 mm | 52 mm | 52 mm | 52 mm | 48 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 969 mm | 969 mm | 972 mm | 978 mm | 988 mm | 997 mm | 1007 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

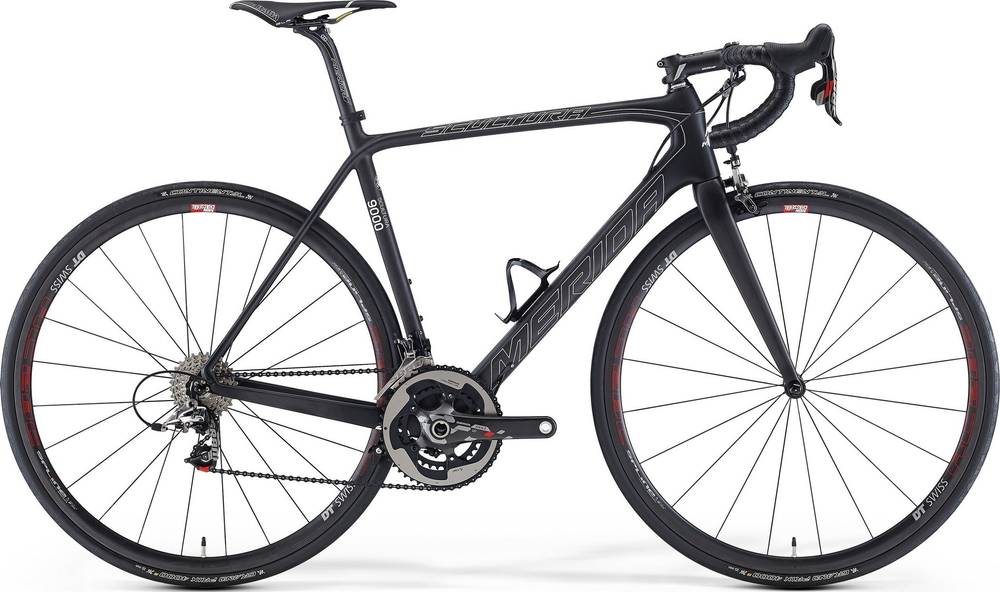

SCULTURA 9000 completes the Merida Scultura model. There are 214 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 6 kg (13.23 lbs), Merida bike is considerably lighter than average. To sum up, it’s 13.67% lighter than the average weight of Race bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the SCULTURA 9000 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
