Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF4
Suspension Fork
Superlite full carbon tapered fork
Drivetrain
Rear Derailleur
SRAM Red eTap
Front Derailleur
SRAM Red eTap
Shift Levers
SRAM Red eTap, 22 speed, electronic
Cassette
SRAM XG-1190, 11 speed, 11-28 teeth
Crank
SRAM Red 50-34 teeth
Chain
KMC X11EL
Wheels
Rims
Fulcrum Quattro carbon 40mm profile wheelset, quick release
Tires
Continental Grand Prix 4000S 25c folding
Brakes
Brakes
SRAM Red eTap
Brake Levers
SRAM Red eTap
Cockpit
Handlebar
MERIDA Team full carbon road bar, oversize clamp
Headset
FSA NO.44/CF
Seat
Saddle
Prologo Nago Evo T2.0
Seatpost
MERIDA Carbon Team S-Flex, 27.2mm, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 572 mm | 578 mm | 580 mm | 581 mm | 591 mm | 600 mm | 610 mm |
| Rake | 45 mm | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 68 mm | 64 mm | 57 mm | 52 mm | 52 mm | 52 mm | 48 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 969 mm | 975 mm | 977 mm | 978 mm | 988 mm | 997 mm | 1007 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

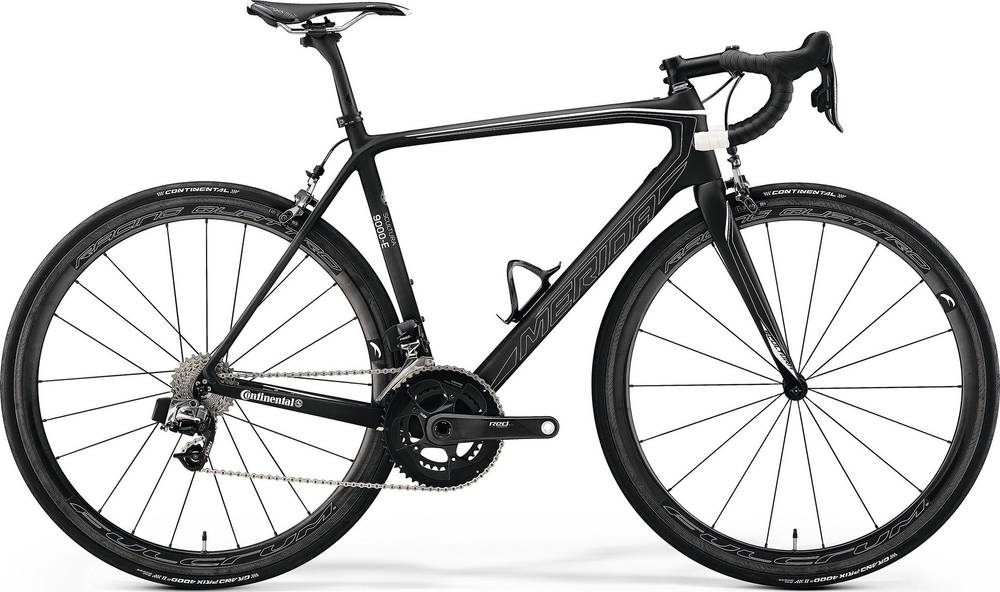

Model Overview
SCULTURA 9000-E is part of the Merida Scultura model. Merida released 214 bikes variations of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Race bikes
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
SCULTURA 9000-E weighs 6.46 kg (14.24 lbs) and is a bit lighter than the average. In short, the average Race bike weight is 5.57% higher than this one.
Overview of components
Fork material
SCULTURA 9000-E has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the SCULTURA 9000-E model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA 9000-E comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
