Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE
Suspension Fork
Pro full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, 18 speed
Cassette
Sunrace, 9 speed, 11-28 teeth
Crank
FSA Omega 50-34 teeth
Chain
KMC M99
Wheels
Front Hub
MERIDA sealed bearing hubs with 12mm through axle front and quick release rear
Rear Hub
MERIDA sealed bearing hubs with 12mm through axle front and quick release rear
Rims
MERIDA Comp, 22mm profile
Spokes
Black stainless
Tires
Maxxis Dolomites 25c folding
Brakes
Brakes
Shimano Sora levers with Promax Decode R mechanical disc brakes, 160mm rotors
Brake Levers
Shimano Sora
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
MERIDA M2339
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Road Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.41 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 36 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 71 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 390 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 703 mm | 726 mm | 750 mm | 768 mm | 785 mm | 804 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

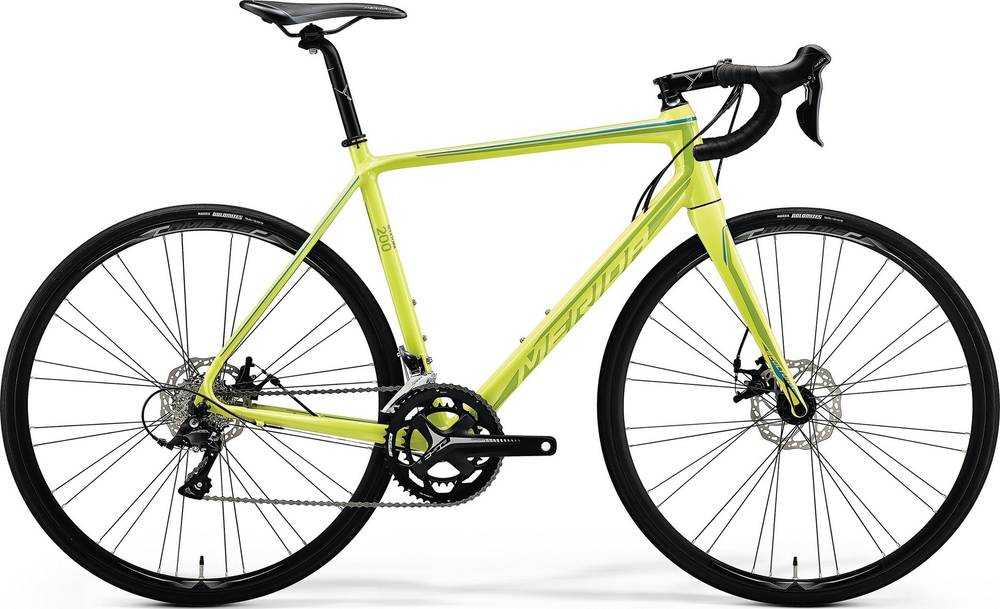

SCULTURA DISC 200 is part of the Merida Scultura model. 214 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.63 kg (21.23 lbs), Merida bike is much heavier than average. In short, the average Race bike weight is 41.2% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Merida SCULTURA DISC 200 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA DISC 200 has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
