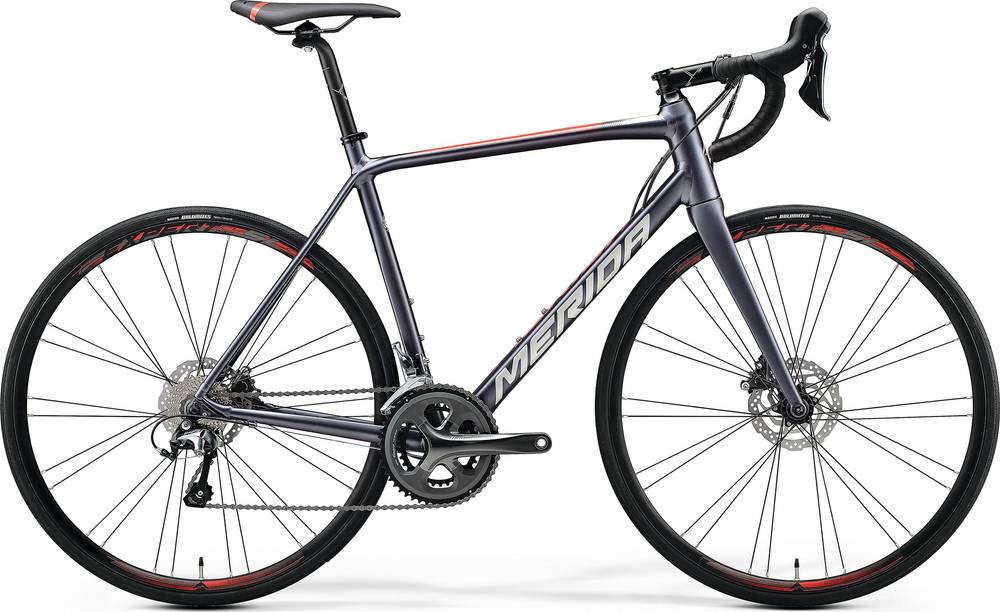

Merida SCULTURA DISC 300 2020
2020 Road
Estimate price |
1,740$
Weight | 9.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE, material: aluminium, 700C wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA CF2 disc
Drivetrain
Rear Derailleur
Shimano Tiagra, GS
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiaga disc
Cassette
Shimano CS-HG500, 12-28 teeth, 10 speed
Crank
Shimano Tiagra, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
Shimano Pressfit BBRS500-PB
Chain
KMC X10
Wheels
Front Hub
MERIDA EXPERT SL
Rear Hub
MERIDA EXPERT SL
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height
Tires
Maxxis Dolomites
Brakes
Brakes
Shimano Tiagra
Brake Levers
Shimano Tiagra
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 531 mm | 544 mm | 557 mm | 576 mm | 595 mm | 621 mm |
| Reach | 375 mm | 377 mm | 388 mm | 392 mm | 396 mm | 403 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 981 mm | 987 mm | 997 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 764 mm | 781 mm | 800 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
SCULTURA DISC 300 is a Merida Scultura model. 214 bikes variations carry this model name so far. Take a sneak peek at all Merida Scultura bikes models from 2020, by clicking here.
Model range prices
Merida SCULTURA 100 2020 is the most affordable bike of this model and has a price of 912$. On the other hand, Merida SCULTURA DISC 9000-E 2020, is the most expensive and costs 9427$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 1581$. Comparing the average cost of a Race bike to this one, you will see that SCULTURA DISC 300 price is 111.89% lower.
Race bikes average weight
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, SCULTURA DISC 300 has a weight of 9.37 kg (20.66 lbs). To sum up, it’s 37.39% heavier than the average weight of Race bikes.
SCULTURA DISC 300 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Merida SCULTURA DISC 300 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA DISC 300 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
