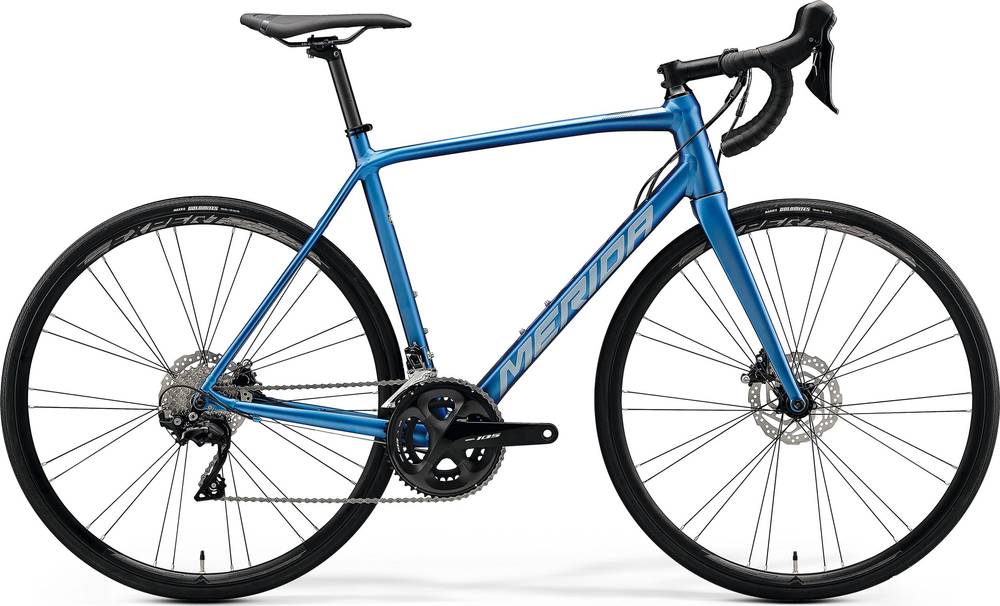

Merida SCULTURA DISC 400 2020
2020 Road
Estimate price |
2,141$
Weight | 9.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE, material: aluminium, 700C wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA CF2 disc
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
Shimano Pressfit BB71
Chain
KMC X11
Wheels
Front Hub
MERIDA EXPERT SL
Rear Hub
MERIDA EXPERT SL
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height
Tires
Maxxis Dolomites
Brakes
Brakes
Shimano 105
Brake Levers
Shimano 105 R7000
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, material: carbon, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 540 mm | 553 mm | 572 mm | 591 mm | 617 mm |
| Reach | 373 mm | 384 mm | 388 mm | 392 mm | 399 mm |
| Top Tube Length | 528 mm | 543 mm | 558 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 977 mm | 983 mm | 993 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 742 mm | 760 mm | 777 mm | 796 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
SCULTURA DISC 400 completes the Merida Scultura model. Merida launched 214 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Merida SCULTURA 100 2020 has a starting price of 912$. Merida SCULTURA DISC 9000-E 2020 on the other hand is the most expensive at 9427$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Merida released this model in 2020, its price was 1946$. Comparing the average cost of a Race bike to this one, you will see that SCULTURA DISC 400 price is 72.15% lower.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
SCULTURA DISC 400 weighs 9.05 kg (19.95 lbs) and is much heavier than the average. In other words, this model is 32.7% heavier than the average Race bike.
SCULTURA DISC 400 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the SCULTURA DISC 400 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
