Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE
Suspension Fork
Scultura Carbon CF2 Disc 12
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano RS505 disc
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano 105 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Bearing Centerlock-12
Rear Hub
Bearing Centerlock-12
Rims
MERIDA comp 22 disc pair
Spokes
Black stainless
Tires
Maxxis Dolomites 25 fold
Brakes
Brakes
Shimano RS505 160
Brake Levers
Shimano RS505
Cockpit
Handlebar
MERIDA Expert Compact road OS lady
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Juliet Sport
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.41 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 36 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 71 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 390 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 703 mm | 726 mm | 750 mm | 768 mm | 785 mm | 804 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

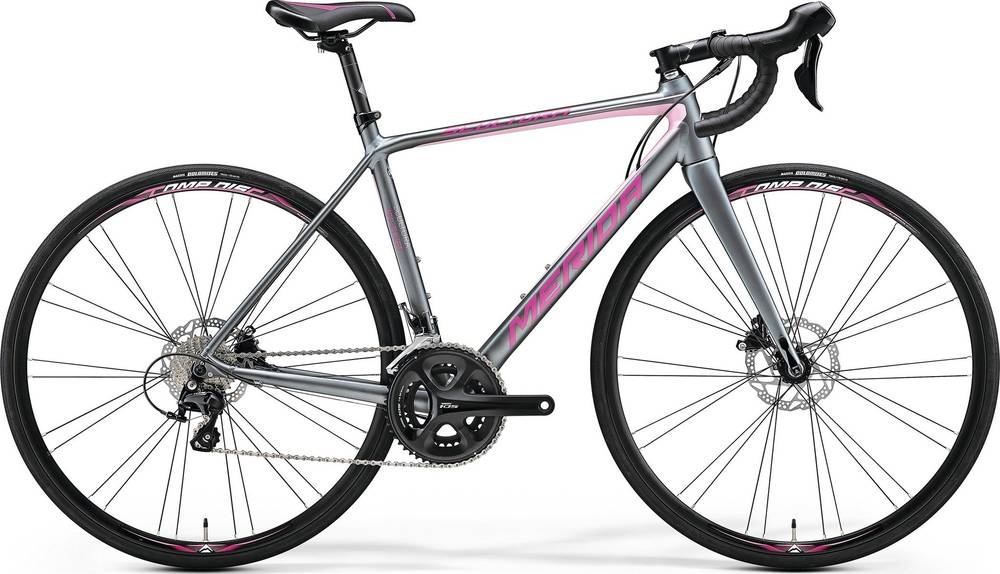

SCULTURA DISC 400 JULIET completes the Merida Scultura model. Merida launched 214 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 9.18 kg (20.24 lbs), Merida bike is much heavier than average. To sum up, it’s 34.6% heavier than the average weight of Race bikes.
SCULTURA DISC 400 JULIET components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the SCULTURA DISC 400 JULIET model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA DISC 400 JULIET is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
