Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE JULIET
Suspension Fork
Pro full carbon tapered fork with 12mm through axle and disc mounts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano RS505 disc, 22 speed
Cassette
Shimano CS-5800, 11 speed, 11-28
Crank
Shimano 105 50-34 teeth
Chain
KMC X11-1
Wheels
Front Hub
Sealed bearing, centerlock, 12mm through axles
Rear Hub
Sealed bearing, centerlock, 12mm through axles
Rims
MERIDA Expert SL - 22mm profile, 17mm inner width, Disc only
Spokes
Double Butted Black stainless
Tires
Maxxis Dolomites 25c folding
Brakes
Brakes
Shimano RS505 hydraulic disc brakes with 160mm rotors
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
MERIDA M2331
Seat
Saddle
Female specific Juliet Sport
Seatpost
MERIDA Carbon Comp 15mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | XXXS | XXS | XS | SM | SM/MD |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.38 mm | 1.42 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 575 mm | 581 mm | 583 mm | 584 mm | 580 mm | 586 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 36 mm | 45 mm |
| Trail | 64 mm | 61 mm | 68 mm | 68 mm | 71 mm | 56 mm |
| Stack | 489 mm | 496 mm | 516 mm | 526 mm | 539 mm | 552 mm |
| Reach | 355 mm | 363 mm | 373 mm | 370 mm | 381 mm | 383 mm |
| Top Tube Length | 487 mm | 497 mm | 512 mm | 517 mm | 527 mm | 542 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 95 mm | 100 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 969 mm | 975 mm | 979 mm | 980 mm | 976 mm | 982 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 651 mm | 666 mm | 694 mm | 717 mm | 741 mm | 759 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

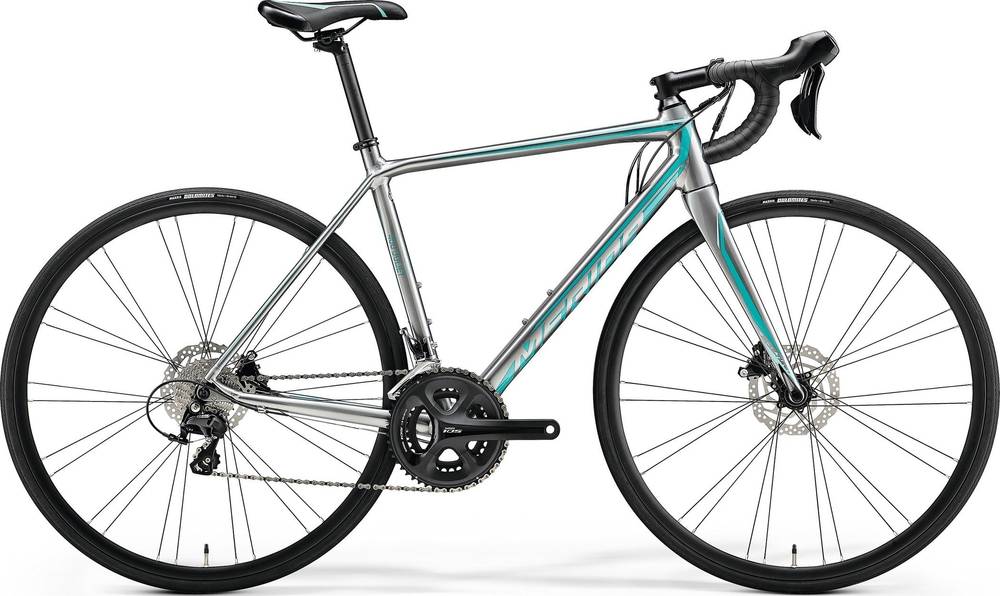

SCULTURA DISC 400 JULIET completes the Merida Scultura model. There are 214 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida SCULTURA DISC 400 JULIET it’s weighing 8.95 kg (19.73 lbs). At this weight, is much heavier than average. To sum up, it’s 31.23% heavier than the average weight of Race bikes.
SCULTURA DISC 400 JULIET components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The SCULTURA DISC 400 JULIET 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA DISC 400 JULIET comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
