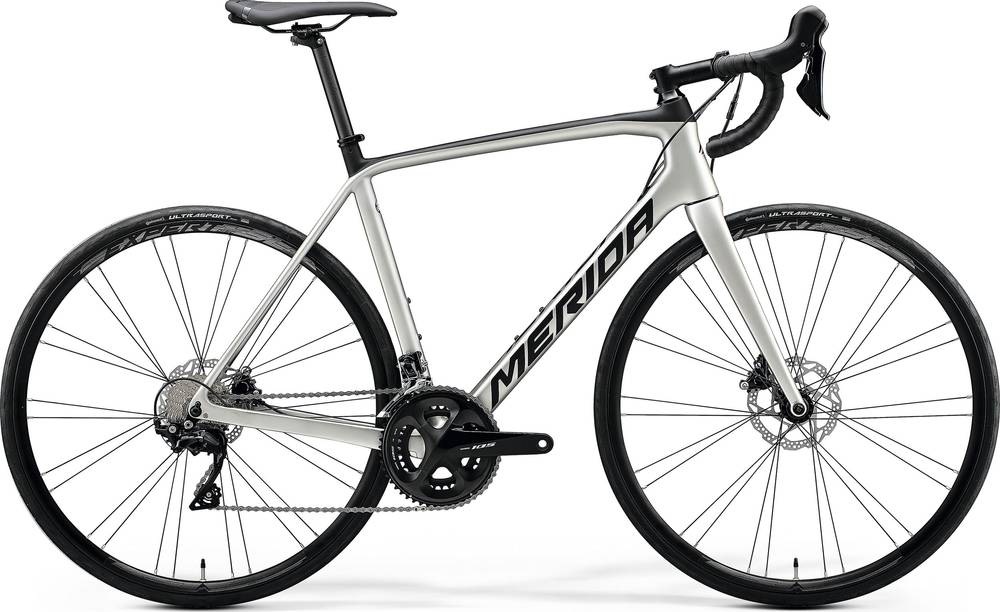

Merida SCULTURA DISC 4000 2020
2020 Road
Estimate price |
2,643$
Weight | 8.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF2, material: carbon, 700C wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA CF2 disc
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
Shimano Pressfit BB71
Chain
KMC X11
Wheels
Front Hub
MERIDA EXPERT SL
Rear Hub
MERIDA EXPERT SL
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height
Tires
Continental Ultra Sport II
Brakes
Brakes
Shimano 105
Brake Levers
Shimano 105 R7000
Disk Rotors
Shimano RT54
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, material: carbon, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 584 mm | 580 mm | 586 mm | 599 mm | 606 mm | 615 mm |
| Rake | 45 mm | 44 mm | 45 mm | 48 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 56 mm | 53 mm | 56 mm | 53 mm |
| Stack | 531 mm | 544 mm | 557 mm | 576 mm | 595 mm | 621 mm |
| Reach | 375 mm | 377 mm | 388 mm | 392 mm | 396 mm | 403 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 981 mm | 987 mm | 1000 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 752 mm | 771 mm | 789 mm | 809 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SCULTURA DISC 4000 completes the Merida Scultura model. Merida released 214 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Merida SCULTURA 100 2020 has a starting price of 912$. Merida SCULTURA DISC 9000-E 2020 on the other hand is the most expensive at 9427$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2402$. In conclusion, this bike price is 39.47% smaller than the price of the average Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, SCULTURA DISC 4000 has a weight of 8.46 kg (18.65 lbs). In conclusion, the average Race bike weighs 24.05% less than SCULTURA DISC 4000.
SCULTURA DISC 4000 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the SCULTURA DISC 4000 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
