Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF2 JULIET
Suspension Fork
SCULTURA CF2 disc
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano R7025 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width, 28 spoke holes, Centerlock / VP CLK270R, 142x12mm width, 28 spoke holes, centerlock
Rear Hub
VP CLK170F, 100x12mm width, 28 spoke holes, Centerlock / VP CLK270R, 142x12mm width, 28 spoke holes, centerlock
Rims
MERIDA Expert SL, 17mm inner width, 22mm height
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II, 700x25C, fold
Brakes
Brakes
Shimano 105 Lady, Hydraulic disc
Brake Levers
Shimano 105 R7000
Cockpit
Handlebar
MERIDA Expert SL
Headset
MERIDA M2331 Neck, 2191026445
Seat
Saddle
MERIDA Juliet Sport
Seatpost
MERIDA Expert CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm |
| Rake | 53 mm | 45 mm | 44 mm | 45 mm |
| Trail | 60 mm | 68 mm | 63 mm | 56 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm |
| Reach | 373 mm | 379 mm | 381 mm | 392 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 705 mm | 711 mm | 746 mm | 765 mm |
| Wheels | 700 | 700 | 700 | 700 |

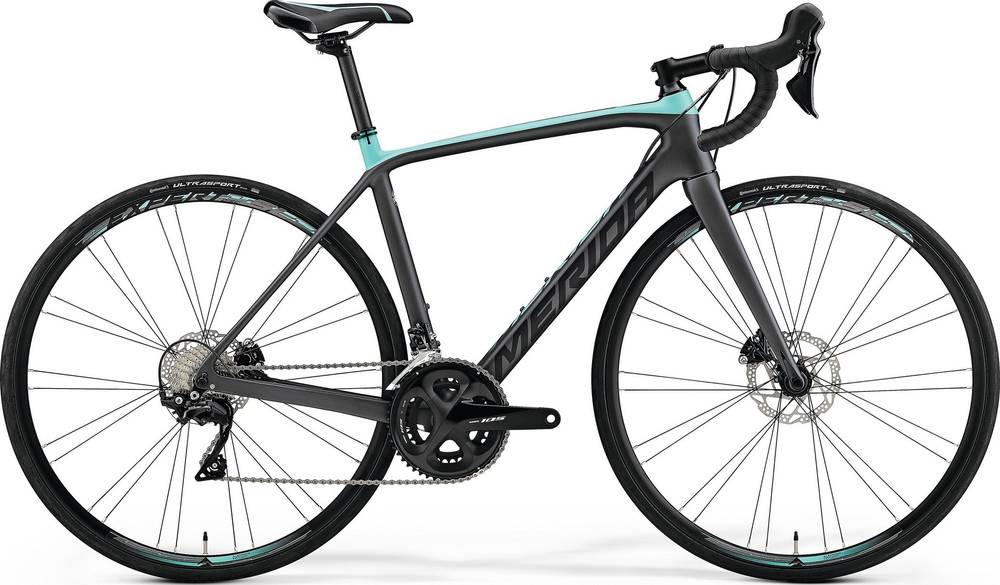

Model Overview
SCULTURA DISC 4000 JULIET belongs to the Merida Scultura model. There are 214 bikes that carry this model name. Take a sneak peek at all Merida Scultura bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida SCULTURA DISC 4000 JULIET it’s weighing 8.52 kg (18.78 lbs). At this weight, is much heavier than average. In short, the average Race bike weight is 24.93% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on SCULTURA DISC 4000 JULIET are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA DISC 4000 JULIET is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
