Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC LITE
Suspension Fork
Scultura Carbon CF2 Disc 12
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano RS685 disc
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Bearing Centerlock-12
Rear Hub
Bearing Centerlock-12
Rims
MERIDA Expert 22 SL disc pair
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
Shimano RS805 160
Brake Levers
Shimano RS685 disc
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.41 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 36 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 71 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 390 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 703 mm | 726 mm | 750 mm | 768 mm | 785 mm | 804 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

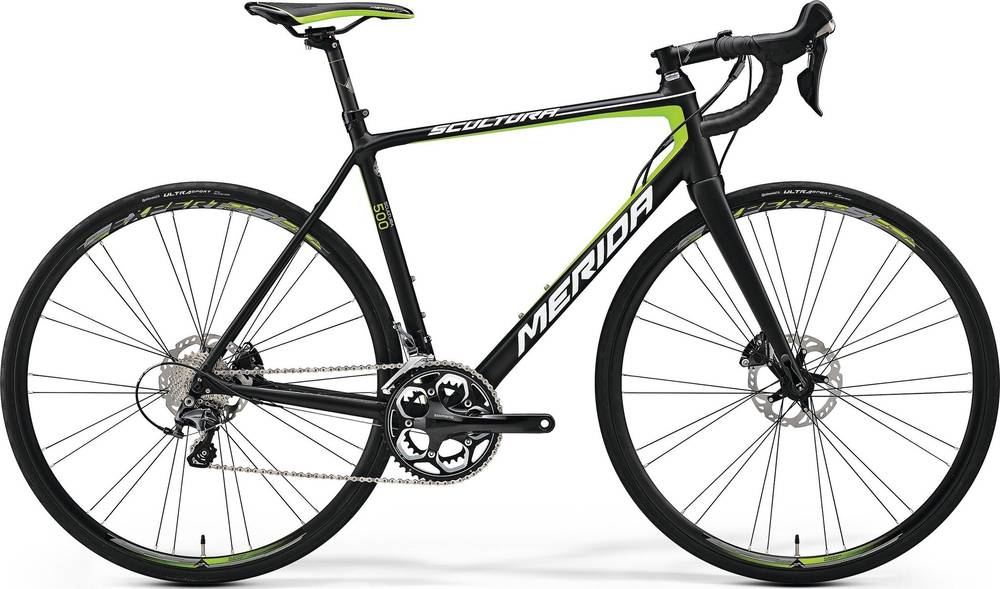

Model Overview
SCULTURA DISC 500 is part of the Merida Scultura model. 214 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.04 kg (19.93 lbs), Merida bike is much heavier than average. In other words, this model is 32.55% heavier than the average Race bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the SCULTURA DISC 500 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA DISC 500 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
