Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF2
Suspension Fork
Scultura Carbon CF2 Disc 12
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano RS685 disc
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano RS500 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Bearing Centerlock-12
Rear Hub
Bearing Centerlock-12
Rims
MERIDA Expert 22 SL disc pair
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
Shimano RS805 160
Brake Levers
Shimano RS685 disc
Cockpit
Handlebar
MERIDA Expert Compact road OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 599 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 48 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 63 mm | 56 mm | 53 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1004 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 707 mm | 726 mm | 756 mm | 775 mm | 793 mm | 813 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

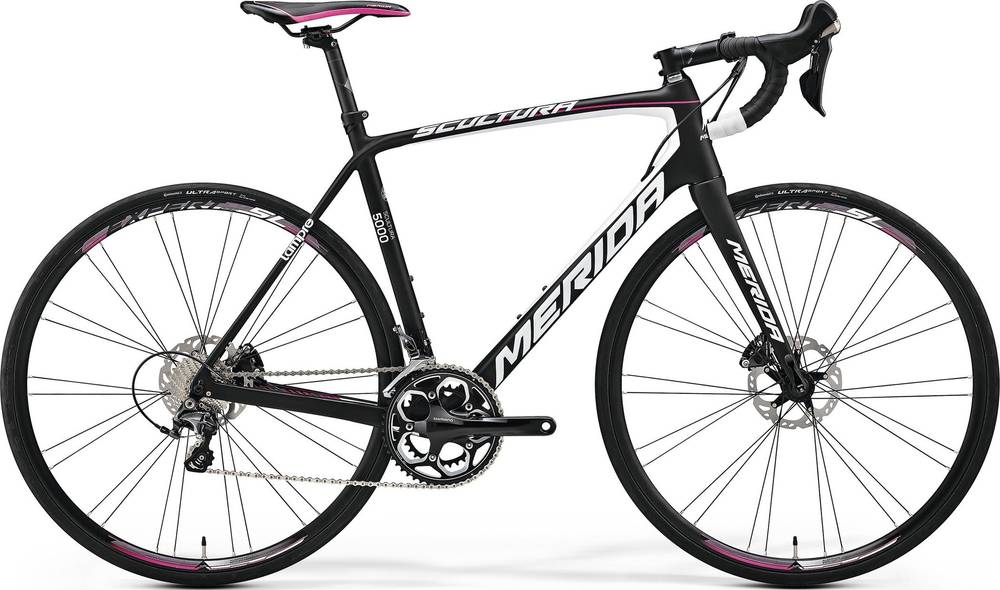

SCULTURA DISC 5000 belongs to the Merida Scultura model. Merida released 214 bikes variations of this model so far. You can easily view all of the Merida Scultura bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 8.52 kg (18.78 lbs), Merida bike is much heavier than average. In short, the average Race bike weight is 24.93% lower than this one.
SCULTURA DISC 5000 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Merida SCULTURA DISC 5000 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA DISC 5000 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
