Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF2
Suspension Fork
SCULTURA CF2 disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, GS
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra disc Di2
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
FSA Energy, 52-36 teeth
Chain
KMC X11
Wheels
Front Hub
100x12mm width / 142x12mm width
Rear Hub
100x12mm width / 142x12mm width
Rims
DT Swiss P1800 Spline DB23, 18mm inner width, 23mm height, Centerlock
Spokes
attached
Tires
Continental Grand Sport Race, 700x25C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic disc
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert SL
Headset
MERIDA M2331 Neck, 2191026445
Seat
Saddle
Prologo Nago Evo
Seatpost
MERIDA Expert CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.44 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 584 mm | 580 mm | 586 mm | 599 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 48 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 63 mm | 56 mm | 53 mm | 56 mm | 53 mm |
| Stack | 525 mm | 535 mm | 548 mm | 561 mm | 580 mm | 599 mm | 625 mm |
| Reach | 382 mm | 379 mm | 381 mm | 392 mm | 396 mm | 400 mm | 407 mm |
| Top Tube Length | 521 mm | 526 mm | 536 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 988 mm | 989 mm | 985 mm | 991 mm | 1004 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 707 mm | 726 mm | 756 mm | 775 mm | 793 mm | 813 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

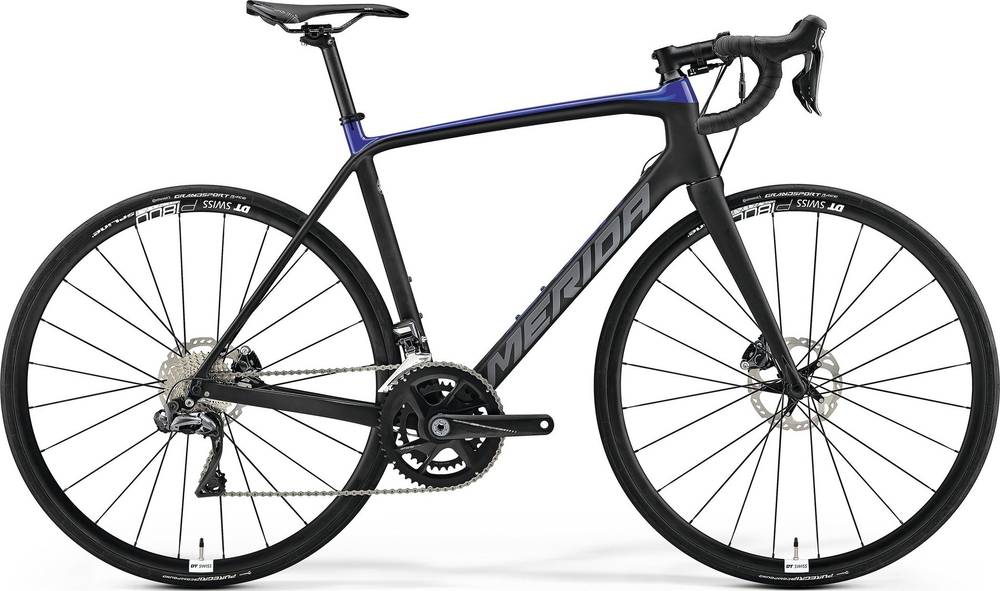

SCULTURA DISC 7000-E belongs to the Merida Scultura model. Merida released 214 bikes variations of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, SCULTURA DISC 7000-E has a weight of 8.31 kg (18.32 lbs). To sum up, it’s 21.85% heavier than the average weight of Race bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the SCULTURA DISC 7000-E bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA DISC 7000-E has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
