Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF4
Suspension Fork
SCULTURA CF4 disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, GS
Front Derailleur
Shimano Ultegra Di2 DF
Shift Levers
Shimano Ultegra disc Di2
Cassette
Shimano CS-R8000, 11-28 teeth, 11 speed
Crank
Shimano Ultegra, 52-36 teeth
Chain
KMC X11EL
Wheels
Rims
Vision SC 40DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 40mm height, Centerlock
Spokes
attached
Tires
Continental Grand Sport Race, 700x25C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic disc
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert SL
Headset
FSA NO.44/CF neck, 2191023107
Seat
Saddle
Prologo Nago Evo T2.0
Seatpost
MERIDA Carbon Team S-Flex, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 575 mm | 581 mm | 583 mm | 584 mm | 594 mm | 604 mm | 613 mm |
| Rake | 48 mm | 49 mm | 50 mm | 49 mm | 49 mm | 50 mm | 49 mm |
| Trail | 65 mm | 61 mm | 54 mm | 48 mm | 48 mm | 47 mm | 45 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 980 mm | 986 mm | 988 mm | 989 mm | 999 mm | 1009 mm | 1018 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

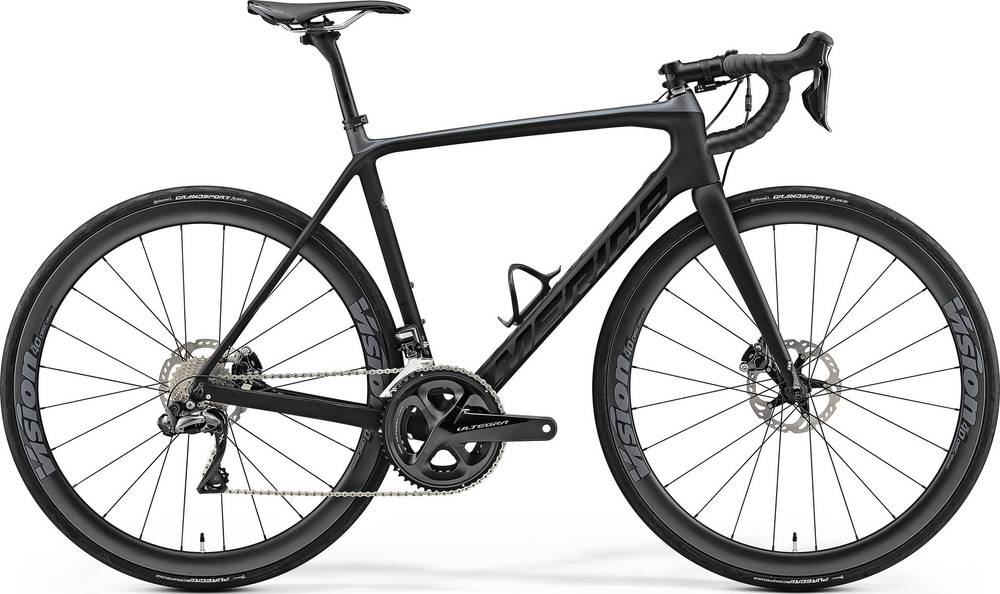

SCULTURA DISC 8000-E belongs to the Merida Scultura model. There are 214 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida SCULTURA DISC 8000-E it’s weighing 7.49 kg (16.51 lbs). At this weight, is a bit heavier than average. In other words, this model is 9.82% heavier than the average Race bike.
Overview of components
Fork material
SCULTURA DISC 8000-E has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the SCULTURA DISC 8000-E bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA DISC 8000-E comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
