Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA DISC CF4
Suspension Fork
Superlite full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace disc, 22 speed, Di2
Cassette
Shimano CS-9100, 11 speed, 11-28 teeth
Crank
Shimano Dura Ace 50-34 teeth
Bottom Bracket
FSA 386-BB30 PF6000
Chain
KMC X11SL DLC
Wheels
Rims
DT Swiss PRC 1400 spline wheelset with R.A.T standard 12mm through axles
Tires
Continental Grand Prix 4000S 25c folding
Brakes
Brakes
Shimano Dura Ace hydraulic disc brakes, 160mm rotors
Brake Levers
Shimano Dura Ace disc
Cockpit
Handlebar
FSA K-Force carbon with compact drop
Headset
FSA NO.44/CF
Seat
Saddle
Prologo Nago Evo CPC
Seatpost
MERIDA carbon Team S-Flex, 27.2mm, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 575 mm | 581 mm | 583 mm | 584 mm | 594 mm | 604 mm | 613 mm |
| Rake | 48 mm | 49 mm | 50 mm | 49 mm | 49 mm | 50 mm | 49 mm |
| Trail | 65 mm | 61 mm | 54 mm | 48 mm | 48 mm | 47 mm | 45 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 980 mm | 986 mm | 988 mm | 989 mm | 999 mm | 1009 mm | 1018 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

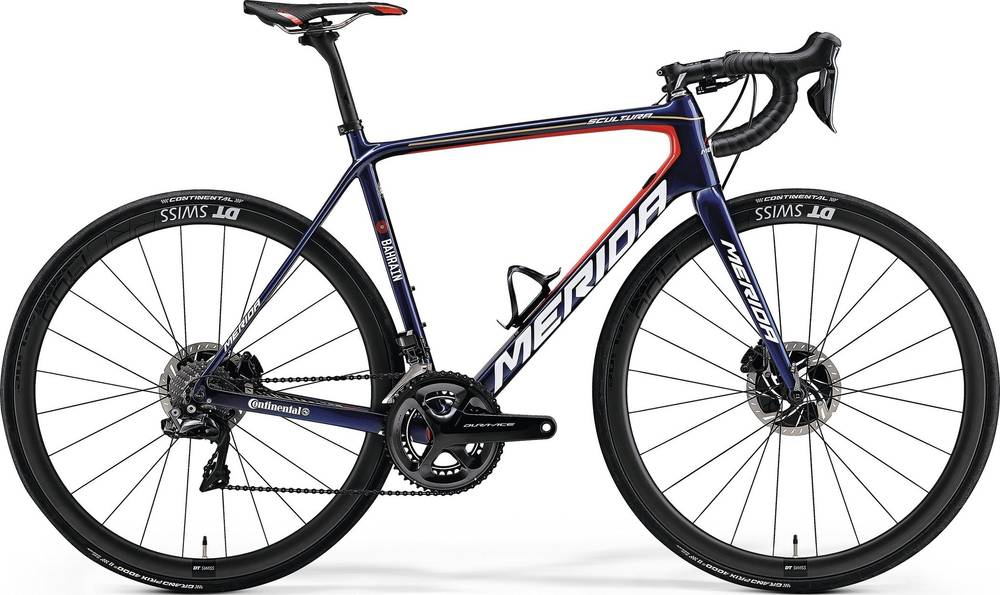

SCULTURA DISC TEAM is a Merida Scultura model. There are 214 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
SCULTURA DISC TEAM weighs 6.97 kg (15.37 lbs) and is slightly heavier than the average. In short, the average Race bike weight is 2.2% lower than this one.
SCULTURA DISC TEAM components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Merida SCULTURA DISC TEAM 2018, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA DISC TEAM has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
