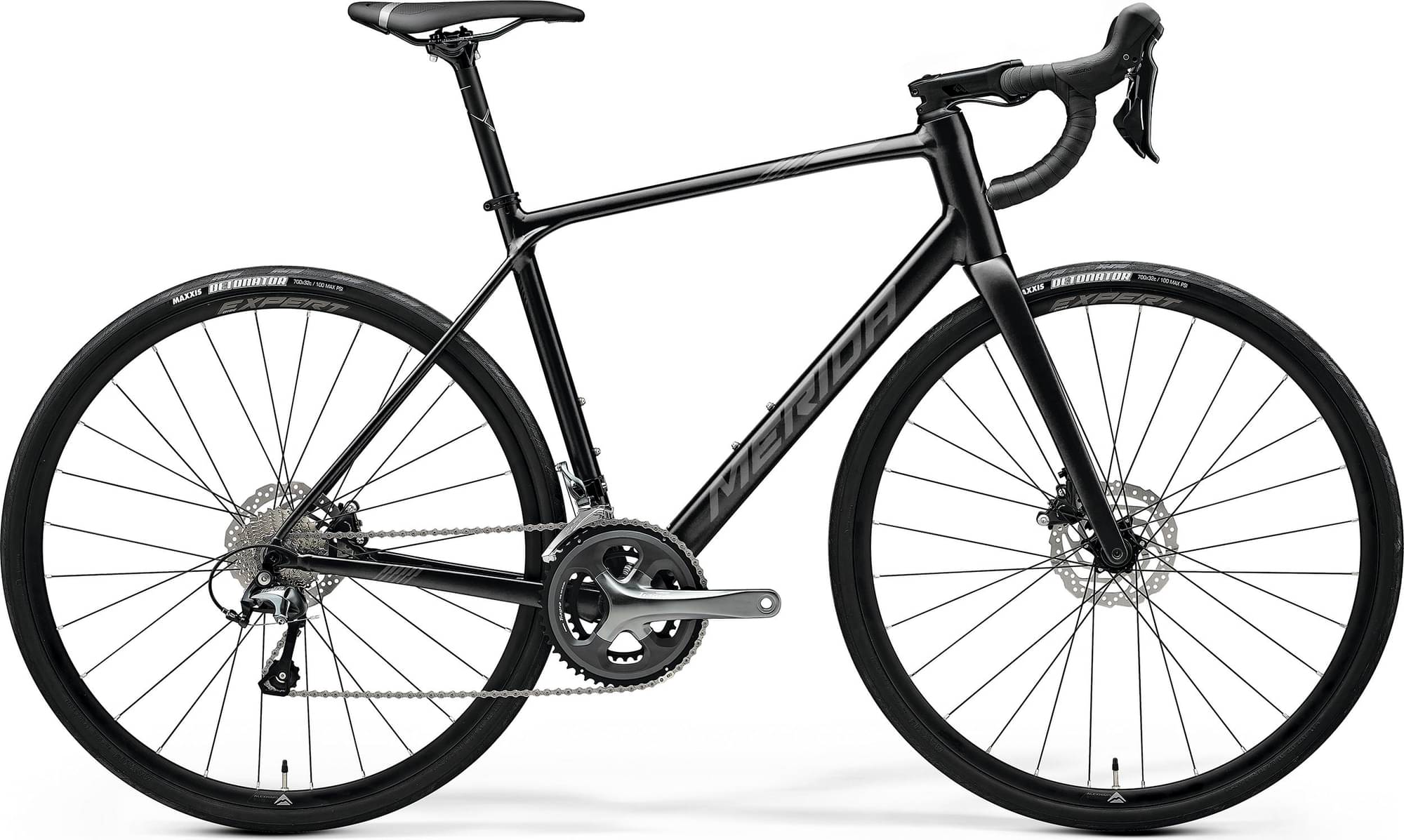

Merida SCULTURA ENDURANCE 300 2023
2023 Road
Estimate price |
1,974$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE LITE, MATaluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Tiagra, GS
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiaga Disc
Cassette
Shimano CS-HG500, 12-28 teeth, 10 speed
Crank
Shimano Tiagra, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
KMC X10
Wheels
Front Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Detonator, 700x32C, fold, Rear: Maxxis Detonator, 700x32C, fold
Brakes
Brakes
Shimano Tiagra, Hydraulic Disc
Brake Levers
Shimano Tiagra
Cockpit
Stem
MERIDA EXPERT CW, 31.8mm diameter, material: aluminium, -8° stem angle, 80 mm-XXS, 90 mm-XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)
Headset
MERIDA 8158, w/o crown race
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 27.2mm diameter, 5mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 588 mm | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 66 mm | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 554 mm | 567 mm | 586 mm | 605 mm | 631 mm |
| Reach | 368 mm | 378 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 526 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 152 mm | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 999 mm | 1003 mm | 1003 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 736 mm | 754 mm | 772 mm | 792 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SCULTURA ENDURANCE 300 belongs to the Merida Scultura model. Merida released 214 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Merida SCULTURA RIM 100 2023 has a starting price of 1077$. Merida SCULTURA 10K 2023 on the other hand is the most expensive at 12164$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Merida SCULTURA ENDURANCE 300 price was 1794$. In conclusion, this bike price is 30.77% smaller than the price of the average Endurance bike.
Overview of components
Fork material
SCULTURA ENDURANCE 300 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the SCULTURA ENDURANCE 300 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA ENDURANCE 300 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
