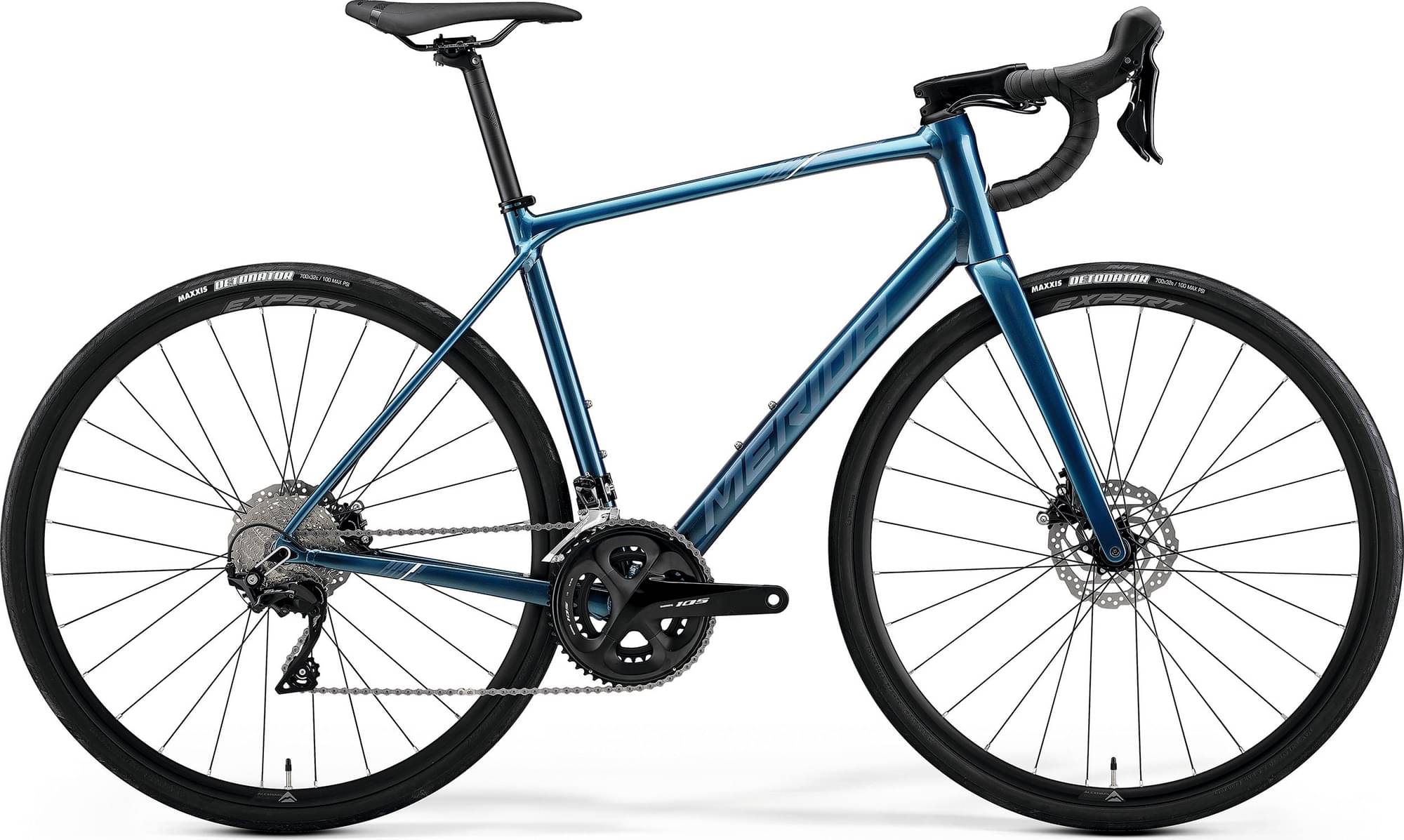

Merida SCULTURA ENDURANCE 400 2023
2023 Road
Estimate price |
2,275$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE LITE, MATaluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 Disc
Cassette
Shimano CS-HG700, 11-34 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
KMC X11
Wheels
Front Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 28 spoke holes, Centerlock, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Front: Maxxis Detonator, 700x32C, fold, Rear: Maxxis Detonator, 700x32C, fold
Brakes
Brakes
Shimano 105, Hydraulic Disc
Brake Levers
Shimano 105
Cockpit
Stem
MERIDA EXPERT CW, 31.8mm diameter, material: aluminium, -8° stem angle, 80 mm-XXS, 90 mm-XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)
Headset
MERIDA 8158, w/o crown race
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 570 mm | 589 mm | 608 mm | 634 mm |
| Reach | 381 mm | 385 mm | 394 mm | 402 mm |
| Top Tube Length | 543 mm | 558 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1006 mm | 1006 mm | 1022 mm | 1031 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 757 mm | 775 mm | 795 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SCULTURA ENDURANCE 400 belongs to the Merida Scultura model. 214 bikes variations carry this model name so far. Take a sneak peek at all Merida Scultura bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Merida SCULTURA RIM 100 2023 has a starting price of 1077$. Merida SCULTURA 10K 2023 on the other hand is the most expensive at 12164$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Merida SCULTURA ENDURANCE 400 price was 2068$. If we compare this with the average Endurance bike cost we notice that the price is 13.44% lower.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Merida SCULTURA ENDURANCE 400 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA ENDURANCE 400 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
SCULTURA ENDURANCE 400 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
