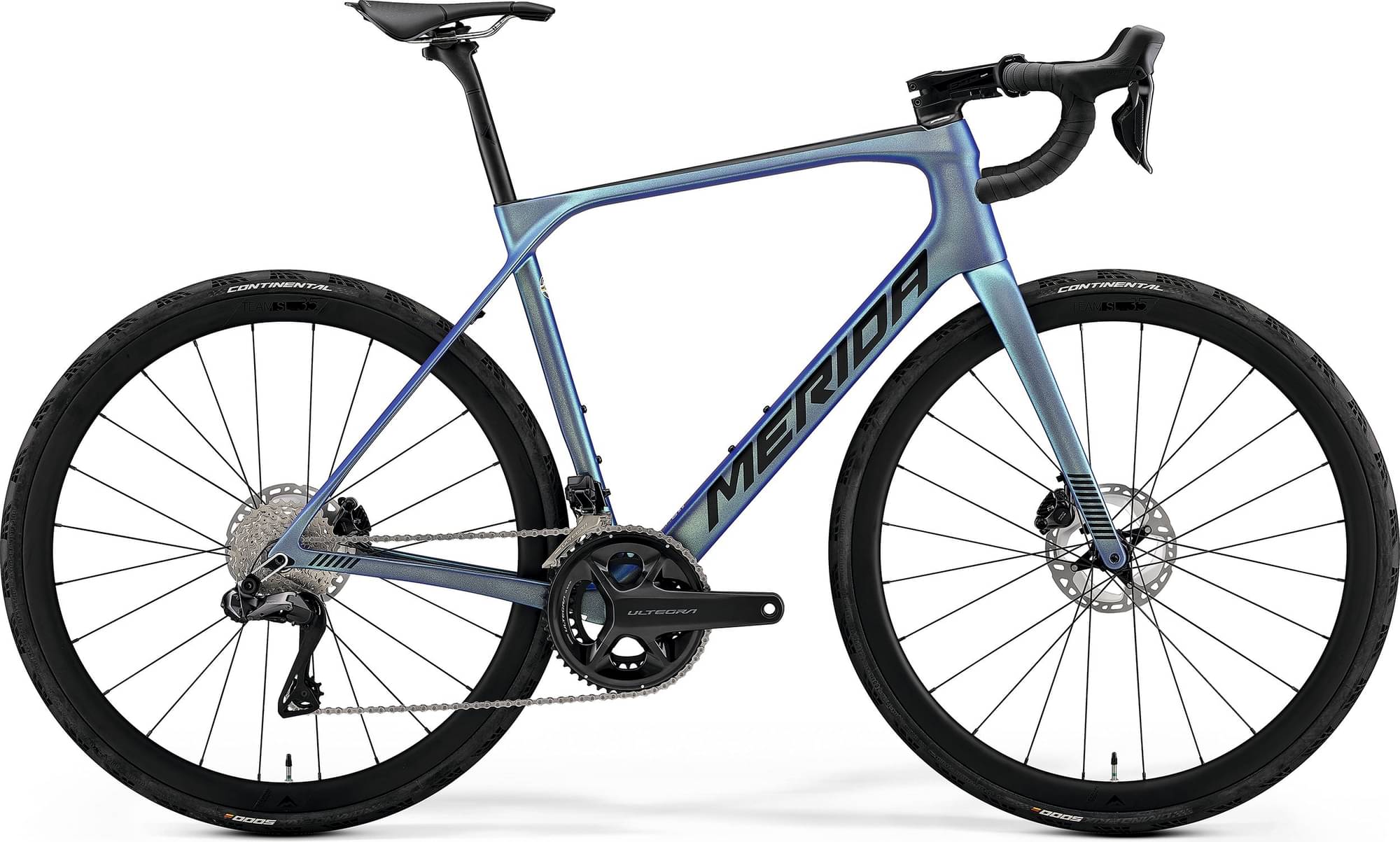

Merida SCULTURA ENDURANCE 8000 2023
2023 Road
Estimate price |
6,156$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Disc Di2
Cassette
Shimano CS-R8100, 11-34 teeth, 12 speed
Crank
Shimano Ultegra, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
Shimano CN-M6100-12
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rims
MERIDA TEAM SL45, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 45mm height, Centerlock, material: carbon
Tires
Front: Continental Grand Prix 5000, 700x32C, fold, Rear: Continental Grand Prix 5000, 700x32C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Cockpit
Stem
FSA SMR ACR, material: aluminium, -6° stem angle, 90 mm-XXS/XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)
Headset
FSA ACR
Seat
Saddle
Prologo Scratch M5
Seatpost
MERIDA TEAM SL / EXPERT CC (depending on availability), 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 588 mm | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 66 mm | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 554 mm | 567 mm | 586 mm | 605 mm | 631 mm |
| Reach | 368 mm | 378 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 526 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 152 mm | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 999 mm | 1003 mm | 1003 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 769 mm | 787 mm | 805 mm | 825 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SCULTURA ENDURANCE 8000 is part of the Merida Scultura model. 214 bikes variations carry this model name so far. Take a sneak peek at all Merida Scultura bikes models from 2023, by clicking here.
Model range prices
Merida SCULTURA RIM 100 2023 is the most economical model, with a starting price of 1077$. Merida SCULTURA 10K 2023 on the other hand costs 12164$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Merida SCULTURA ENDURANCE 8000 price was 5595$. Comparing this to the average Endurance bike price, we see that the price is 138.49% higher.
SCULTURA ENDURANCE 8000 components
Fork material
SCULTURA ENDURANCE 8000 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The SCULTURA ENDURANCE 8000 2023 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA ENDURANCE 8000 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
