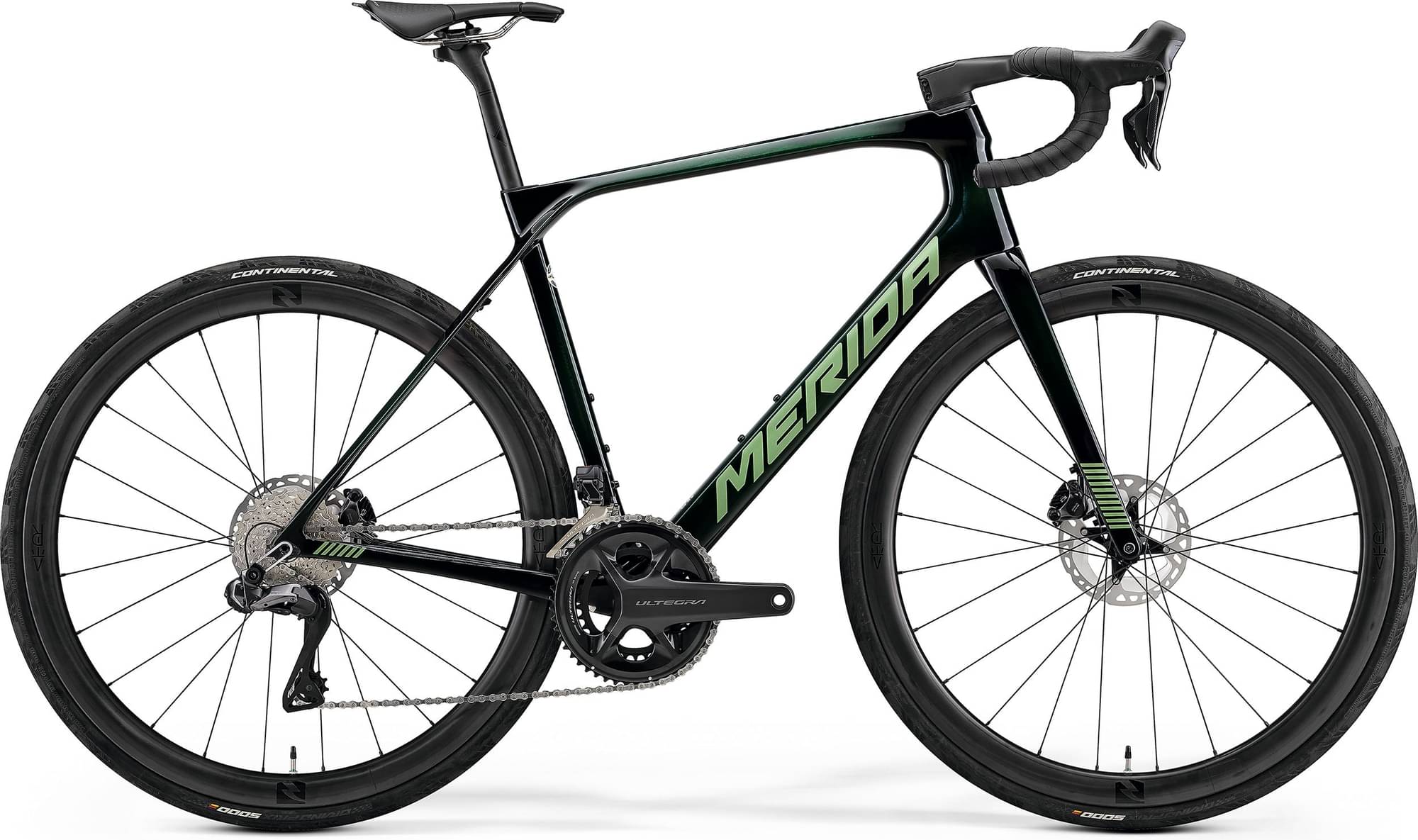

Merida SCULTURA ENDURANCE 9000 2023
2023 Road
Estimate price |
6,959$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Disc Di2
Cassette
Shimano CS-R8100, 11-34 teeth, 12 speed
Crank
Shimano Ultegra, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M8100-12
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rims
Reynolds ATR DB, 100x12mm width front hub, 142x12mm width rear hub, 23mm inner width, 40mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Front: Continental Grand Prix 5000, 700x32C, fold, Rear: Continental Grand Prix 5000, 700x32C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Cockpit
Stem
MERIDA TEAM ONE-PIECE INTEGRATED, material: carbon, 90 mm-XXS/XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA TEAM SL 1P INTEGRATED, material: carbon, 400mm (XXS-XS-S), 420mm (M), 440mm (L-XL)
Headset
MERIDA TEAM SL, SE-301 neck
Seat
Saddle
Prologo Scratch M5
Seatpost
MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 570 mm | 589 mm | 608 mm | 634 mm |
| Reach | 381 mm | 385 mm | 394 mm | 402 mm |
| Top Tube Length | 543 mm | 558 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1006 mm | 1006 mm | 1022 mm | 1031 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 790 mm | 808 mm | 828 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SCULTURA ENDURANCE 9000 belongs to the Merida Scultura model. Merida launched 214 bikes of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2023, by clicking here.
Model range prices
Merida SCULTURA RIM 100 2023 is the most affordable bike of this model and has a price of 1077$. On the other hand, Merida SCULTURA 10K 2023, is the most expensive and costs 12164$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6325$. Doing a quick comparison, we notice that SCULTURA ENDURANCE 9000 price is 169.61% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the SCULTURA ENDURANCE 9000 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA ENDURANCE 9000 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
