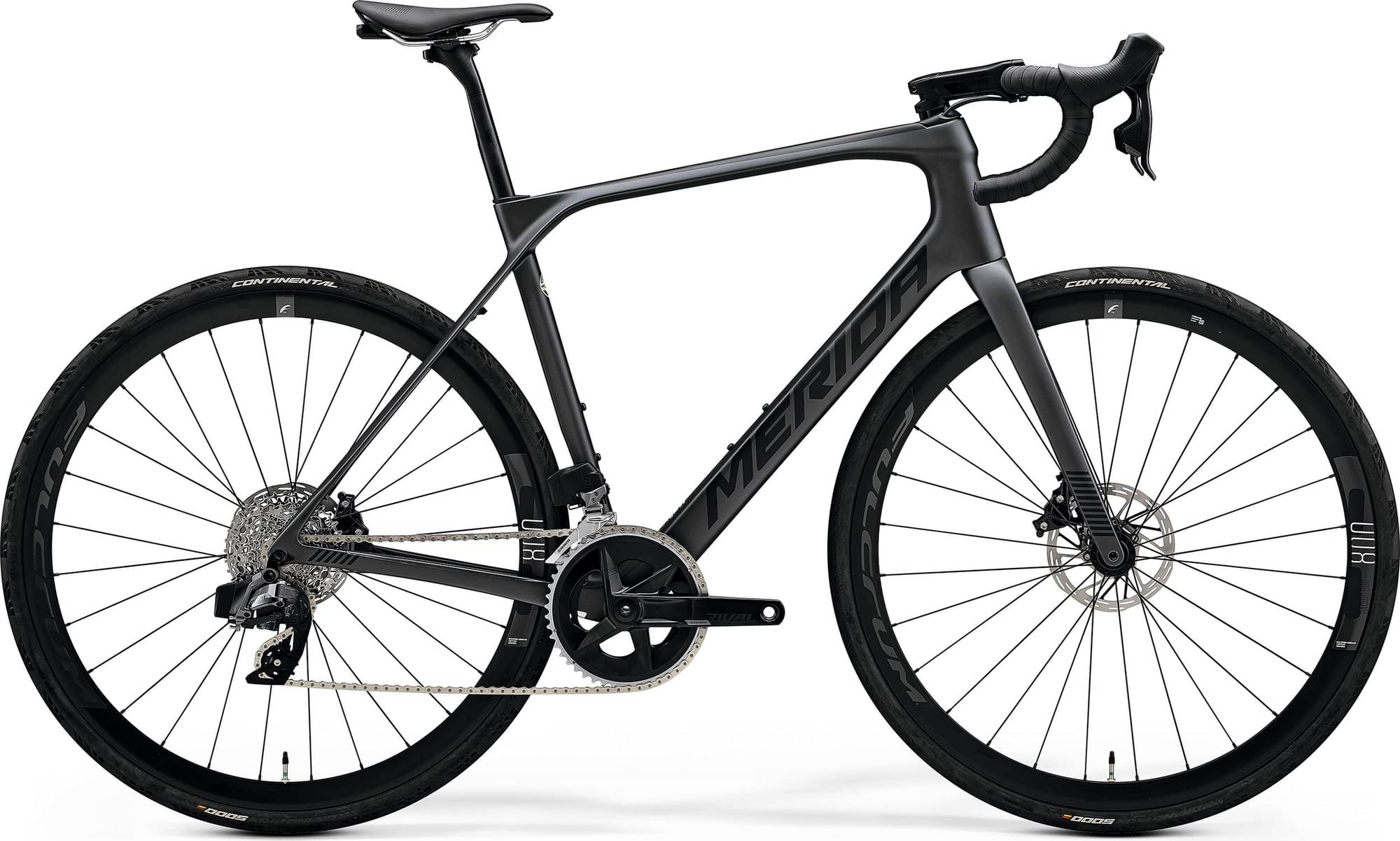

Merida SCULTURA ENDURANCE RIVAL-EDITION 2023
2023 Road
Estimate price |
4,550$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, SS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTAP AXS HRD
Cassette
CS XG 1250 D1, 10-36 teeth, 12 speed
Crank
SRAM Rival eTap AXS, 48-35 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SRAM Pressfit Dub, Presfit 86.5
Chain
SRAM Rival 12s
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rims
Fulcrum Racing 800 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 34mm height, Centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Front: Continental Grand Prix 5000, 700x32C, fold, Rear: Continental Grand Prix 5000, 700x32C, fold
Brakes
Brakes
SRAM ED Rival eTap AXS, Hydraulic Disc
Brake Levers
SRAM ED Rival eTap AXS
Cockpit
Stem
MERIDA EXPERT CW, 31.8mm diameter, material: aluminium, -8° stem angle, 80 mm-XXS, 90 mm-XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)
Headset
MERIDA 8151, w/o crown race
Seat
Saddle
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL / EXPERT CC (depending on availability), 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.53 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 588 mm | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 66 mm | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 554 mm | 567 mm | 586 mm | 605 mm | 631 mm |
| Reach | 368 mm | 378 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 526 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 152 mm | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 999 mm | 1003 mm | 1003 mm | 1019 mm | 1028 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 769 mm | 787 mm | 805 mm | 825 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SCULTURA ENDURANCE RIVAL-EDITION is part of the Merida Scultura model. There are 214 bikes that carry this model name. You can easily view all of the Merida Scultura bikes models from 2023, here.
Model range prices
Merida SCULTURA RIM 100 2023 is the most economical model, with a starting price of 1077$. Merida SCULTURA 10K 2023 on the other hand costs 12164$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Merida released this model in 2023, its price was 4136$. Comparing this to the average Endurance bike price, we see that the price is 76.3% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The SCULTURA ENDURANCE RIVAL-EDITION 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA ENDURANCE RIVAL-EDITION has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
