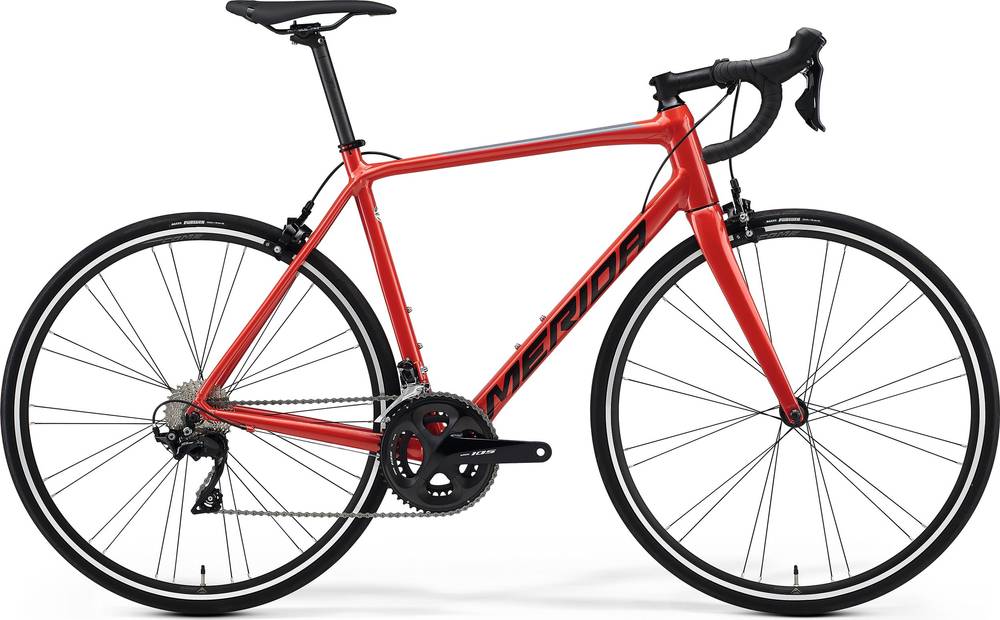

Merida SCULTURA RIM 400 2021
2021 Road
Estimate price |
1,539$
Weight | 8.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA LITE, material: aluminium, 700x25C max. wheelsize, 100x9/ 135x9mm axle standard, Pressfit bottom bracket standard
Suspension Fork
SCULTURA RIM CF2, 700x25C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
KMC X11
Wheels
Front Hub
Road seal bearing, 100x9mm width front hub, 24 spoke holes, 130x9mm width rear hub, 28 spoke holes
Rear Hub
Road seal bearing, 100x9mm width front hub, 24 spoke holes, 130x9mm width rear hub, 28 spoke holes
Rims
MERIDA COMP SL, 17mm inner width, 24mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Pursuer, 700x25C, fold
Brakes
Brakes
Shimano 105
Brake Levers
Shimano 105
Cockpit
Stem
MERIDA EXPERT CC, 31.8mm diameter, material: aluminium, -5° stem angle, 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(4XS,3XS,XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 584 mm | 580 mm | 586 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 56 mm | 56 mm | 56 mm | 53 mm |
| Stack | 531 mm | 544 mm | 557 mm | 576 mm | 595 mm | 621 mm |
| Reach | 375 mm | 377 mm | 388 mm | 392 mm | 396 mm | 403 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 981 mm | 987 mm | 997 mm | 1007 mm | 1016 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 764 mm | 781 mm | 800 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SCULTURA RIM 400 is part of the Merida Scultura model. There are 214 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Merida SCULTURA RIM 300 2021 is the most economical model, with a starting price of 986$. Merida SCULTURA 9000-E 2021 on the other hand costs 10461$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1399$. In conclusion, this bike price is 139.46% lower than the price of the average Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida SCULTURA RIM 400 it’s weighing 8.16 kg (17.99 lbs). At this weight, is much heavier than average. In other words, this model is 19.65% heavier than the average Race bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the SCULTURA RIM 400 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA RIM 400 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
