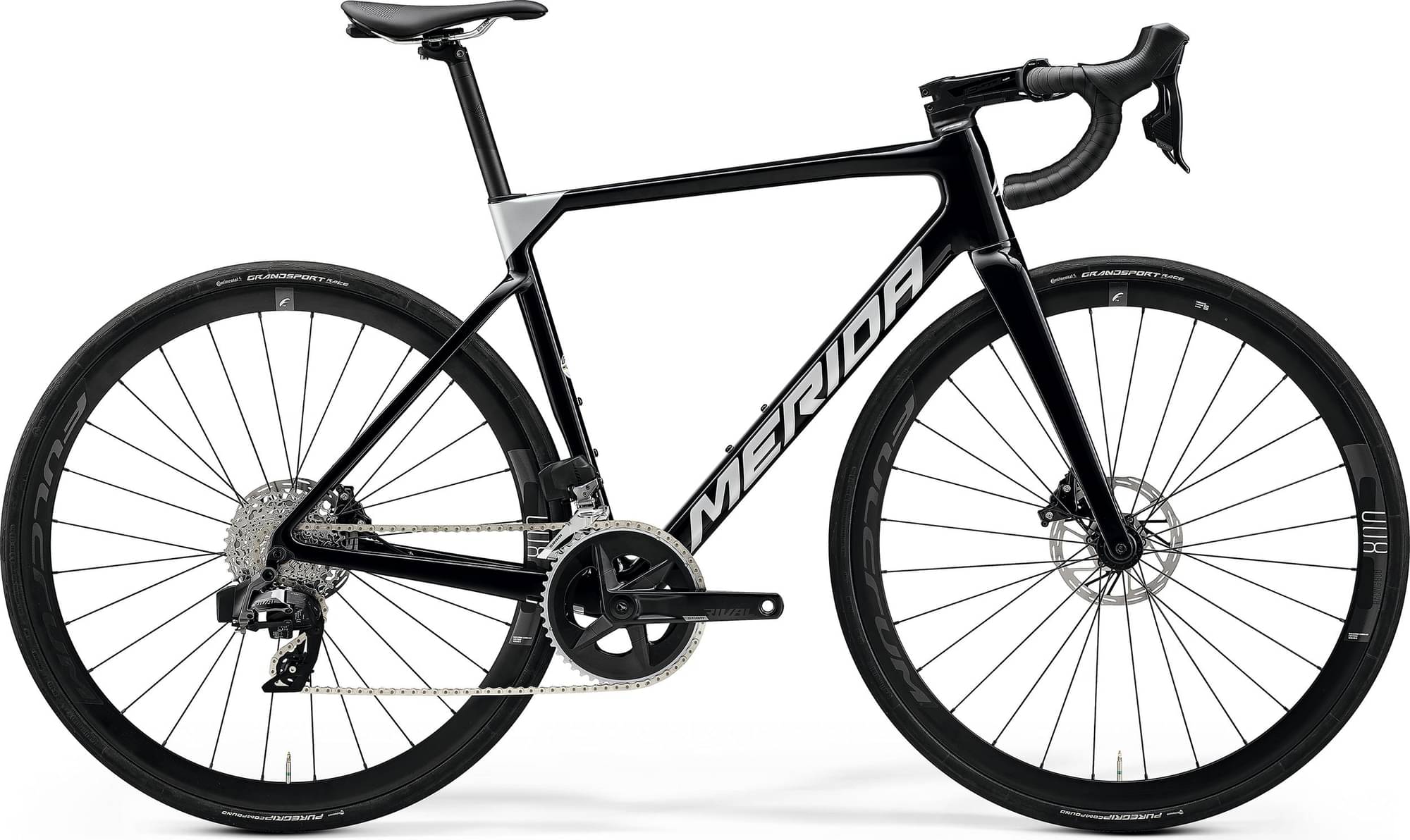

Merida SCULTURA RIVAL-EDITION 2023
2023 Road
Estimate price |
3,543$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
SCULTURA CF3 Disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, SS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTAP AXS HRD
Cassette
CS XG 1250 D1, 10-36 teeth, 12 speed
Crank
SRAM Rival eTap AXS, 48-35 teeth, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
SRAM Rival 12s
Wheels
Rims
Fulcrum Racing 800 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 34mm height, Centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Continental Grand Sport Race, 700x28C, fold
Brakes
Brakes
SRAM ED Rival eTap AXS, Hydraulic Disc
Brake Levers
SRAM ED Rival eTap AXS
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
Headset
FSA ACR
Seat
Saddle
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 584 mm | 590 mm | 591 mm | 601 mm | 611 mm |
| Rake | 45 mm | 46 mm | 44 mm | 45 mm | 46 mm | 45 mm |
| Trail | 71 mm | 61 mm | 60 mm | 53 mm | 52 mm | 50 mm |
| Stack | 518 mm | 530 mm | 543 mm | 558 mm | 572 mm | 594 mm |
| Reach | 378 mm | 384 mm | 391 mm | 396 mm | 401 mm | 410 mm |
| Top Tube Length | 521 mm | 536 mm | 546 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 458 mm | 481 mm | 501 mm | 521 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 986 mm | 983 mm | 990 mm | 991 mm | 1001 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 766 mm | 783 mm | 801 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
SCULTURA RIVAL-EDITION is a Merida Scultura model. 214 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida SCULTURA RIM 100 2023 is the most affordable bike of this model and has a price of 1077$. On the other hand, Merida SCULTURA 10K 2023, is the most expensive and costs 12164$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. Comparing the average cost of a Race bike to this one, you will see that SCULTURA RIVAL-EDITION price is 5.21% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The SCULTURA RIVAL-EDITION 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SCULTURA RIVAL-EDITION is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
