Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF4
Suspension Fork
Scultura Mid Superlite
Drivetrain
Rear Derailleur
Shimano Dura Ace
Front Derailleur
Shimano Dura Ace
Shift Levers
Shimano Dura Ace
Cassette
Shimano CS-9100-11 11-28
Crank
Rotor 3D30 noQ 52-36 [386]
Bottom Bracket
386EVO, 86mm, press-fit
Chain
KMC X11SL DLC
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Racing Quattro carbon
Spokes
attached
Tires
Continental Grand Prix 4000S 25 KV
Brakes
Brakes
Shimano Dura Ace / Shimano Dura Ace-direct
Brake Levers
Shimano Dura Ace
Cockpit
Handlebar
FSA K-Force Compact OS
Headset
B44-4852-BCP carbon neck pro
Seat
Saddle
Prologo Scratch 2 T2.0
Seatpost
MERIDA EGM-light-27.2 SB15 [E]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 572 mm | 572 mm | 575 mm | 581 mm | 591 mm | 600 mm | 610 mm |
| Rake | 45 mm | 40 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 68 mm | 70 mm | 62 mm | 52 mm | 52 mm | 52 mm | 48 mm |
| Stack | 506 mm | 518 mm | 530 mm | 549 mm | 563 mm | 577 mm | 598 mm |
| Reach | 377 mm | 383 mm | 389 mm | 394 mm | 400 mm | 405 mm | 414 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 969 mm | 969 mm | 972 mm | 978 mm | 988 mm | 997 mm | 1007 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 697 mm | 724 mm | 750 mm | 770 mm | 785 mm | 804 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

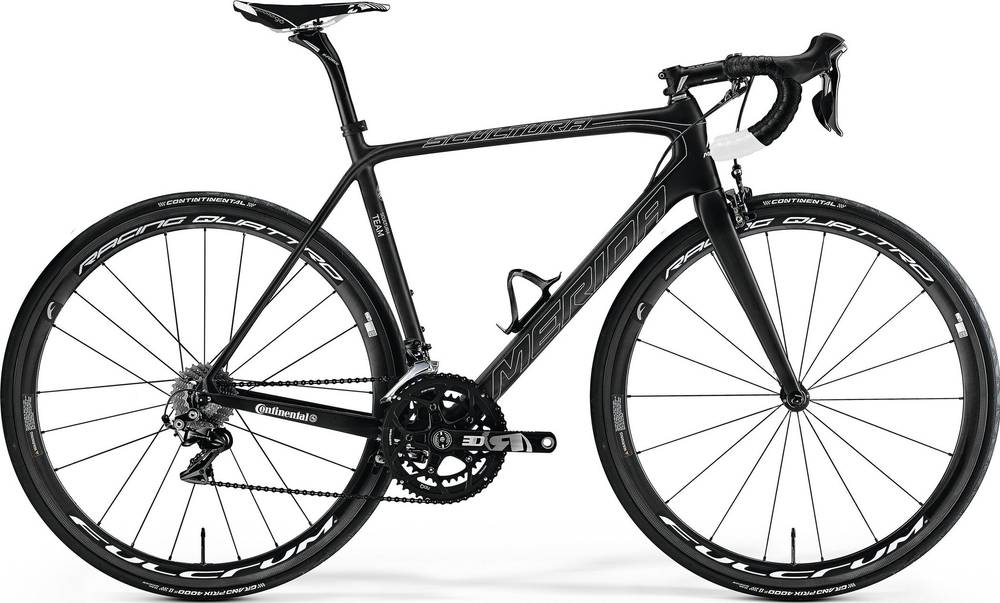

SCULTURA TEAM is a Merida Scultura model. Merida released 214 bikes variations of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
SCULTURA TEAM components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on SCULTURA TEAM are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA TEAM has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
